If your Toshiba TY-LP 200 Record Player turntable isn’t rotating once it turned on or if it’s producing audio that is either lower pitched or delayed, then this could mean that your record player’s belt is damaged. This guide will help you to disassemble the Toshiba TY-LP 200 Record Player and replace the belt of the player, thus fixing the problem. Before using the guide, inspect the record player disc as it may be damaged, thus resulting in unclear audio. Be sure to try and spin the turntable of the record player to confirm that the problem is indeed the belt as well. If the turntable rotates and it does not stop by itself, then the belt must be replaced. This guide does not require any prior knowledge and is perfectly safe for new fixers.
Werkzeuge
-
-

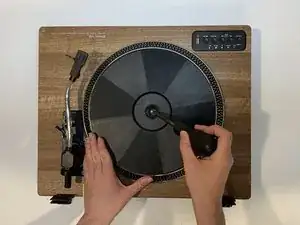

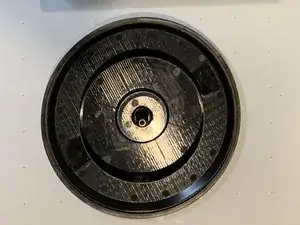

Locate the C-clip at the center base of the platter and remove it with a flathead screwdriver.
-
-
-

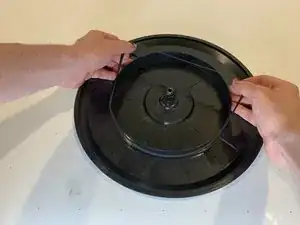

Place the new belt around the center ring of the upside-down platter.
-

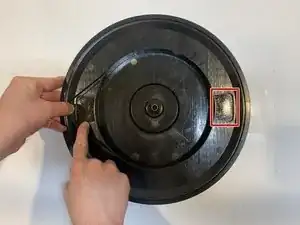

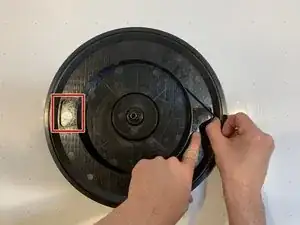

After placing the new belt, stretch the belt towards one of the indented areas on the back of the platter.
-
-
-

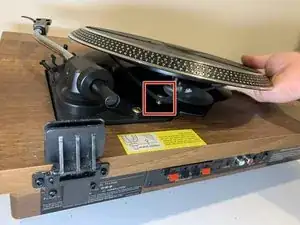

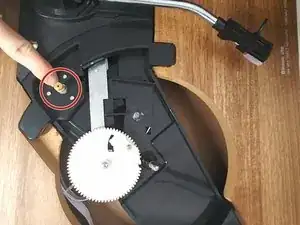

Once you have located the spool drive, place the stretched belt over it, and gently put back the platter into its original form, as shown in step 2.
-
-
-

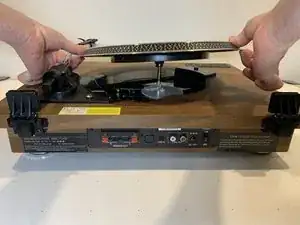

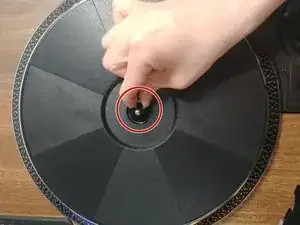

Place the C-type back into its original place and, with your finger, attach it onto the spindle.
-

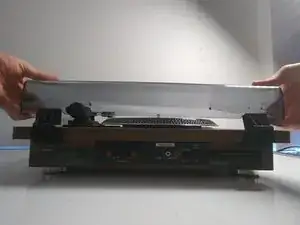

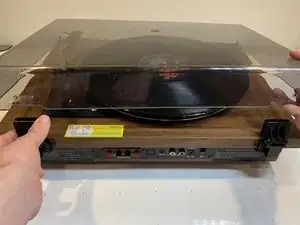

Reinstall the dust cover by placing it on the snaps and applying force downwards.
-
You now have a fixed and working record player.
