Einleitung

If your Toshiba Tecra 8200 is running slowly or you are unable to save documents, your hard drive may need replacement.

  1. tlxTWZ26ETA5QQNy
    • Turn off the device and unplug the power cord.

    • To remove the battery, flip the device, so that the bottom is facing upward.

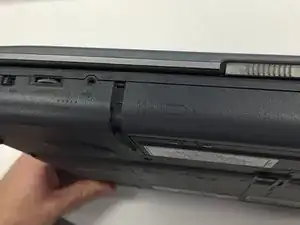

  2. Ui2u31SLRb65cy2m
    Ui2u31SLRb65cy2m
    FFpl2PYnn1duGkTG
    HPYrg1Mu1Bt25sOO

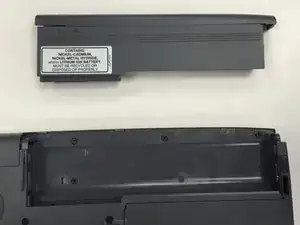

    • Slide the battery to the right side until you hear a click.

    • Carefully remove the battery from its compartment.

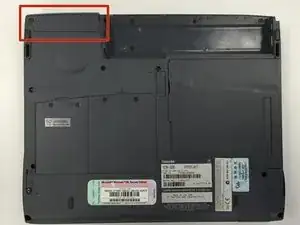

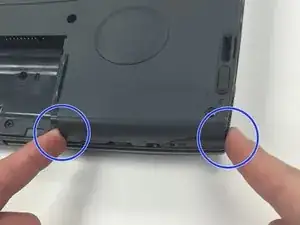

  3. OGP25JGOKqBYwThN
    OGP25JGOKqBYwThN
    AvbKErgUHheHMOpf
    YHS1MCM2pova1EPS
    • Locate the hard drive panel.

    • Remove the single screw labeled F4 by using a Philips size #00 screwdriver.

    • Save the screw, as it will be needed for reassembly.

    • Remove the panel, exposing the hard drive.

  4. VosGtUqMOLlPuRxE
    VosGtUqMOLlPuRxE
    jRPfBIEtZhxjhXSq

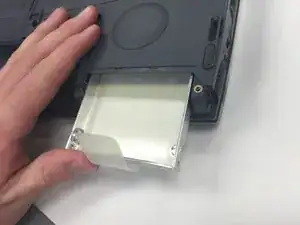

    • Pull the tab to remove the hard drive.

    • Insert the new hard drive by pushing it into the compartment, leaving the new "pull" tab exposed.

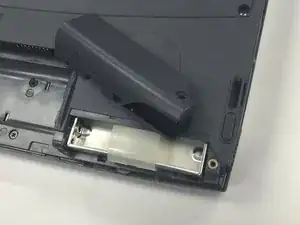

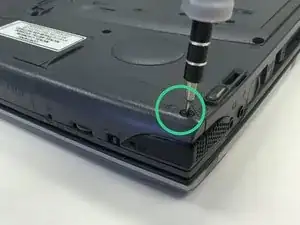

  5. xAjlMZCNZE4PuMe5
    xAjlMZCNZE4PuMe5
    HcvROa3wmaXpHfIK
    • Tuck the "pull" tab back into the hard drive compartment.

    • Replace the panel.

    • Replace the single F4 screw.

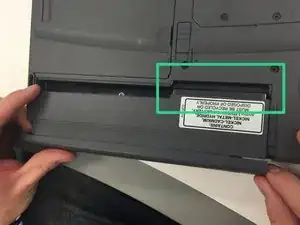

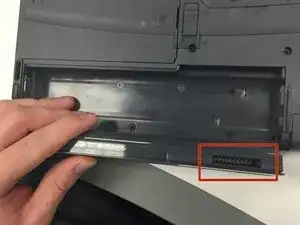

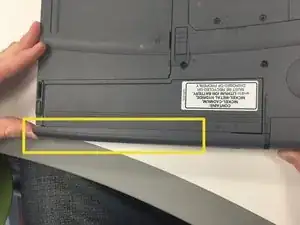

  6. VYtIfrBAAwasphDZ
    VYtIfrBAAwasphDZ
    goFENRYRxdVEq11U
    ccR2UPWDfdVtfkhf
    • Identify the connector pins on the battery.

    • Line up the connector pins on the battery with the connector pins on the computer and push inward to reconnect the battery.

    • Slide the exterior panel towards the center of the computer to lock the battery in place.
