Toshiba Tecra M2 RAM Replacement

Geschrieben von: Cindy Nguyen
  • Kommentare: 2
Toshiba Tecra M2 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

  1. sWIixhNx1EjSPJcZ

    • Flip the laptop upside down so the back compartment is facing up.

    • Place left thumb on the battery lock tab.

    • Place right thumb on the battery release latch.

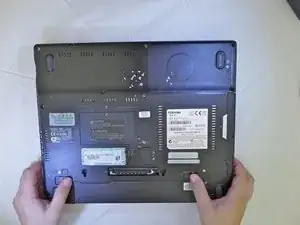

  2. elUcuPKXgmiwRcRV
    elUcuPKXgmiwRcRV
    HddW1gUtOTHBHkYA

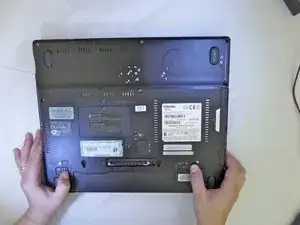

    • Slide both tabs outward at the same time to release battery pack.

  3. 25rWwoSO2IJ5StBo

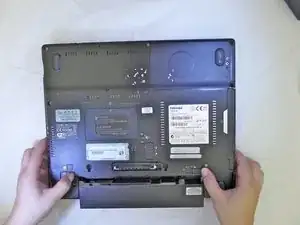

    • Pull out the battery after it has popped out and set aside.

    • The battery and the battery cover are in one piece

  4. XZrGDb2cPaZTxGDs

    • Use a #00 phillips head screwdriver to remove the 8mm screw for the keyboard strip located under the battery.

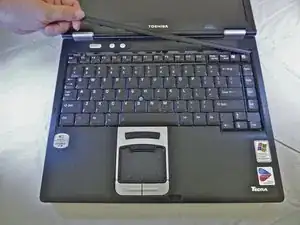

  5. XYriSgPEKSo2Wcce

    • Turn the device over and open it up to the display and keyboard.

    • Gently lift a corner of the keyboard strip until it pops out of its position.

  6. olYItAhxWEgl12QV
    olYItAhxWEgl12QV
    BmNcrmNsNPgwf4OR
    SeAlxbVhtVh1OhQx

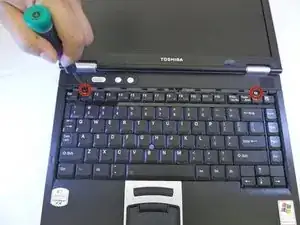

    • Using a #00 phillips head screwdriver, remove the two 4mm screws found underneath the keyboard strip.

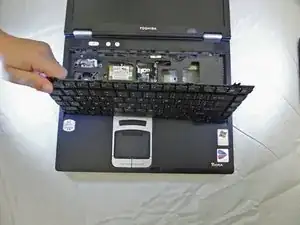

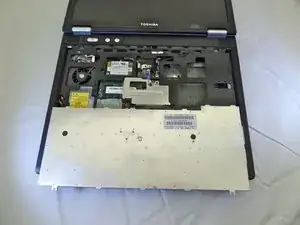

  7. VjbeninMnEIyibbV
    VjbeninMnEIyibbV
    DRaUkrJsuG6kicJJ

    • Pop the keyboard up gently and let it rest on top of the touch pad

    • The keyboard is attached underneath by a thin film. Do not rip the keyboard off. Gently lay it down without ripping the film.

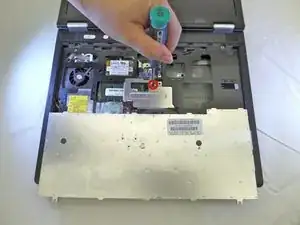

  8. ugNjrhxmDUkPB2wB
    ugNjrhxmDUkPB2wB
    mYQhx1XLbl4AGNdW

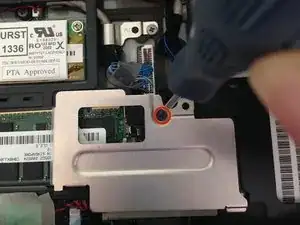

    • Using a #00 philips head screwdriver, remove the 6mm screw holding the metal plate down.

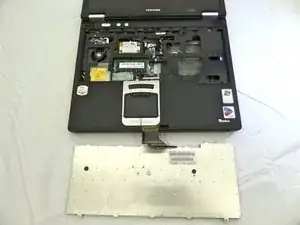

  9. hgfe2JwpAyfEVhmQ
    hgfe2JwpAyfEVhmQ
    plAmacXxTHiW6BBU

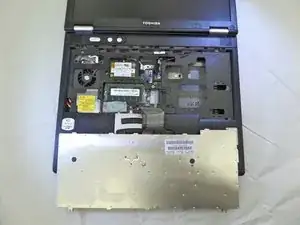

    • Gently remove the keyboard connector film from the motherboard with your fingers by lifting upwards.

    • Set aside the keyboard.

  10. XFkiqnkRuPv5AJPv
    XFkiqnkRuPv5AJPv
    rFTFmncwECfreyU4
    GBAcIwAYePNY4QZH

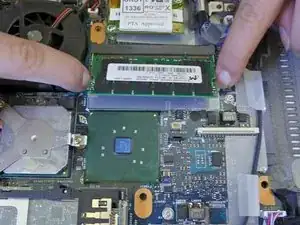

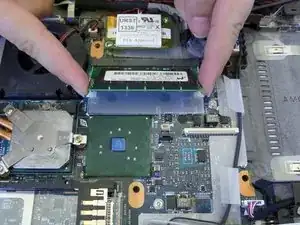

    • Pull back the metal tabs holding down your RAM card at the same time.

    • Grab the module by the sides with two index fingers and pull upwards after it has popped up.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Cindy Nguyen

Mitglied seit: 08/09/14

386 Reputation

2 Kommentare

Awesome. Thanks!

Carl H -

Wow, so I was about to call BS on this being a weirdly convoluted way to do this, but instead I learned something. In the pictures you can see a panel, right above the Windows Authenticity sticker, with a black "CAUTION" sticker held in by a single screw. Remove this panel and, voila, there's your RAM slot. I kept wondering why the author of this guide was having the reader go to all the trouble of removing the keyboard when obviously you could access this area from this spot on the bottom a whole lot easier.

Well, guess what? Contrary to my initial belief, this is NOT just a more convoluted method of reaching the same slot! So yeah, it's probably worth mentioning that there are actually 2 slots in different locations for anyone else who may be screwing around with this ancient laptop and be as confused as I was for a second there. (I suspect the author just forgot to mention it, since you can see they've removed that back panel stick already in the Step 4 pic.)
