Einleitung

This guide is the place to start when doing most repairs on this device. Most parts cannot be accessed until the backing panel is removed.

  1. RacYrT4ldNtotZen

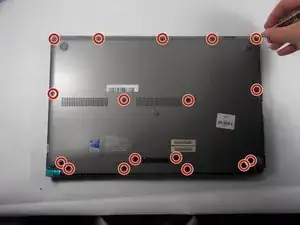

    • Turn off the laptop.

    • Flip the laptop over so the bottom is facing upwards and the hinges are closest to you.

    • Remove the fifteen 5 mm screws from the back panel using a Phillips #0 screwdriver.

  2. mmyLxxRmCQ4kccxM

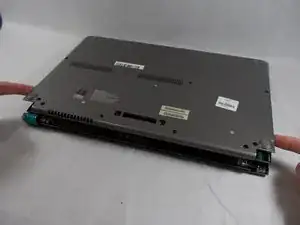

    • Lift up back panel using your hands and remove it from the rest of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
