Toshiba Tecra Z50-A Hard Drive Replacement

Geschrieben von: Dominic Hryzan
  • Kommentare: 0
Toshiba Tecra Z50-A Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

5 Minuten

Einleitung

If you’re experiencing a hardware failure or just want an upgrade to your device’s performance, this guide will walk you through the steps of replacing your hard drive.

  1. RacYrT4ldNtotZen

    • Turn off the laptop.

    • Flip the laptop over so the bottom is facing upwards and the hinges are closest to you.

    • Remove the fifteen 5 mm screws from the back panel using a Phillips #0 screwdriver.

  2. mmyLxxRmCQ4kccxM

    • Lift up back panel using your hands and remove it from the rest of the laptop.

  3. 1emejiB4NGAcmQih

    • Lift the plastic covering over the battery plug.

  4. WARAXXQ25wmF4JOR

    • Pull the wired cable up towards the top of the laptop to disconnect it from its socket on the motherboard.

  5. YQ6JmMEYEyUSUTbI

    • Remove the single 2 mm screw from the corner of the laptop using a Phillips #0 screwdriver.

  6. Pj21i1PEUNGbaLZP

    • Remove the three 3 mm screws from the battery using a Phillips #0 screwdriver.

  7. Y5hQ5ubZOX6ivlpW

    • Lift up on the battery with your hands and remove it from the laptop.

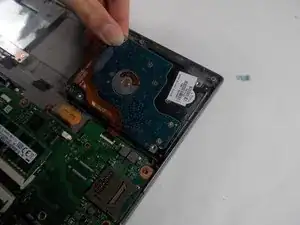

  8. EIjcar2xfIYkoamV

    • Lift up on the hard drive.

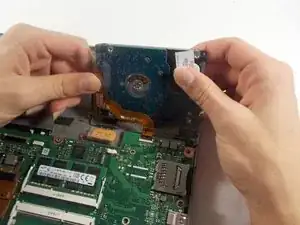

  9. kvrnVP4hNkTvjpiD
    kvrnVP4hNkTvjpiD
    MEoWy1Jmmq1uZFfh

    • Pull out the plug from the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
