Toshiba Thrive 4G Battery Replacement

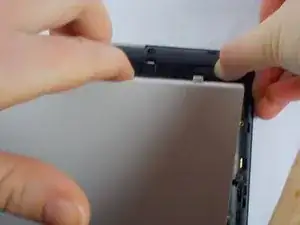

To remove the outer casing, wedge the pry tool in between the front and back panel, and pull them apart.

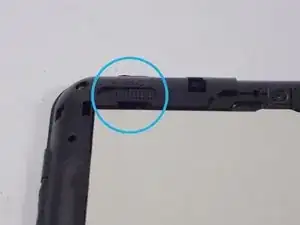

Locate the lock switch, at the top left corner of the device, and adjust to the unlocked position. (from left to right)

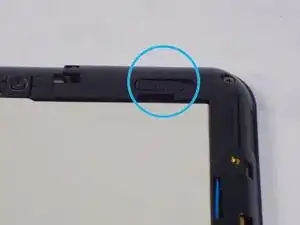

Use your fingers to push the release switch, which is located at the top right corner of the device to the right.

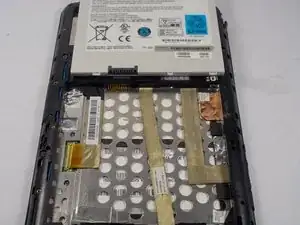

While pushing the release switch to the right, use your other hand to pull the battery away from the inner casing.

To replace the battery, take your replacement piece and flip it upside down, revealing the warnings and specifications of that specific battery.

Locate the crevice at the bottom of the battery, which has black openings in it.

Line up the black openings with the golden prongs located on the inner casing, and slide the battery into place.

Move the lock/unlock switch to the locked position
