Toshiba Thrive Charging Port Replacement

Make sure the lock switch for the back cover is unlocked.

The cover is unlocked when the switch is slid in the direction of the 'unlock' icon.

Remove back cover by prying away from the Thrive.

The easiest place to pry from is one of the two speakers.

To remove the battery, make sure the lock switch is in the unlocked position.

The battery is unlocked when the switch is slid to the unlocked position.

Slide the battery switch release to the right.

While holding the switch in place, lift up the battery.

Start by using a screwdriver to remove the 12 screws holding on the back cover. The screws are 5mm in length and require a PH0 screwdriver.

All of these screws are identical so don't worry about getting them mixed up.

Start to gently pry the back of the device off, while leaving it loosely in place.

Be careful not to tear or damage the cables when removing the back.

Once the back of the case is off, disconnect the wires by gently pulling on the plastic tabs as shown.

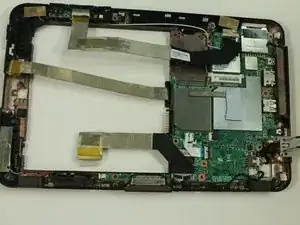

Carefully open the device like a book and lay the two halves beside each other.

Remove the two screws holding the charging port in place. The screws are 3mm in length and require a PH0 screwdriver.

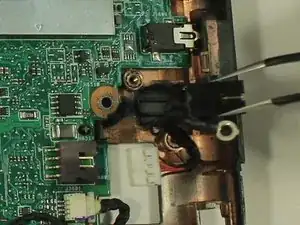

Using a pair of tweezers, lift up the charging port's protective covering

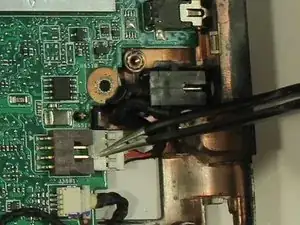

Use the tweezers to pull out the connector connecting the charging port to the motherboard.

Using the tweezers again, gently lift up the charging port from your Thrive.
