This guide outlines the steps needed to replace the impeller spindle. The spindle is the shaft that the impeller spins around.
-
-

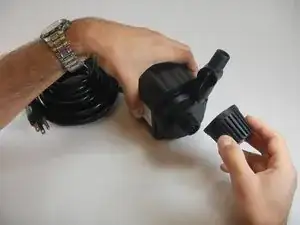

Hold the inlet screen and rotate it counterclockwise to unscrew it. It is helpful to remove the inlet screen so that it is not damaged during the replacement process.
-
-
-

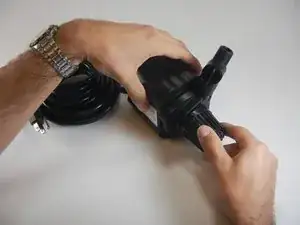

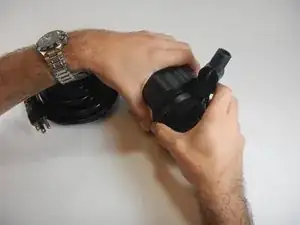

Firmly hold the pump block with one hand and the impeller housing with the other hand. Rotate impeller housing counterclockwise until it is released.
-
-
-

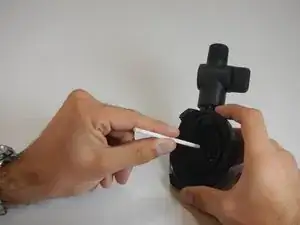

Remove the rubber stop that is attached to the tube that runs through the middle of the impeller. Also remove the bearing that is between the stop and the impeller.
-
-
-

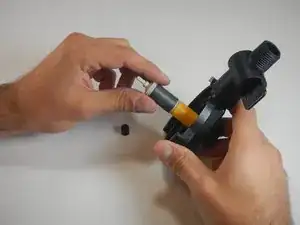

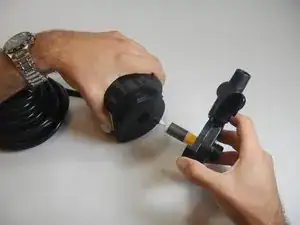

Hold the impeller cover with one hand and the impeller with the other. Slide the impeller out.
-
-
-

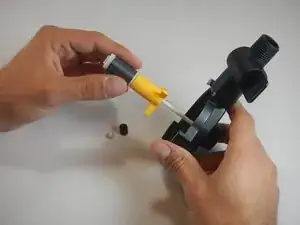

Hold the impeller spindle and wiggle it side to side until it detaches from the impeller cover.
-
To reassemble your device, follow these instructions in reverse order.
