In this guide, the reader will be taught how to remove the inlet screen, detach and remove the impeller housing, and remove the damaged O-ring.
-
-

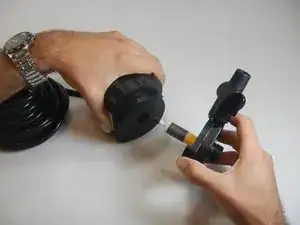

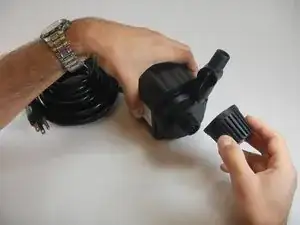

Hold the inlet screen and rotate it counterclockwise to unscrew it. It is helpful to remove the inlet screen so that it is not damaged during the replacement process.
-
-
-

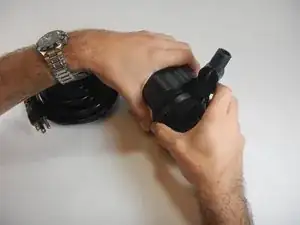

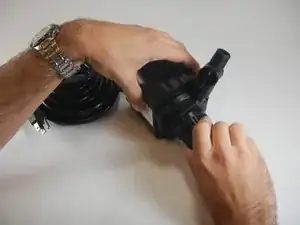

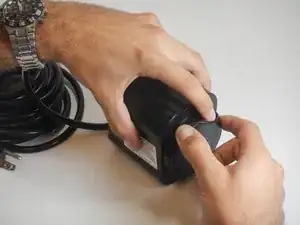

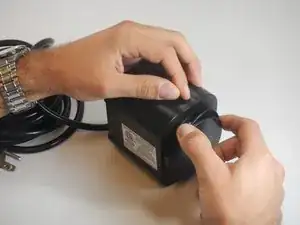

Firmly hold the pump block with one hand and the impeller housing with the other hand. Rotate impeller housing counterclockwise until it is released.
-
-
-

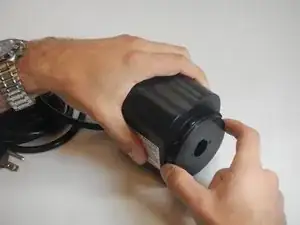

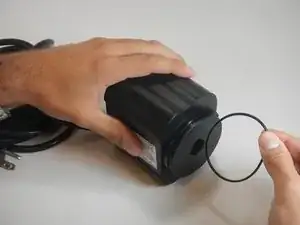

While holding the pump with one hand, pinch the O-ring and slide it upward with your free hand so that a portion of the ring is lifted.
-
-
-

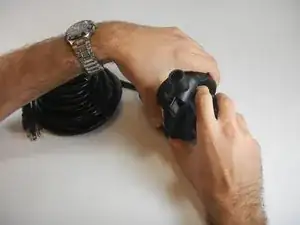

With one finger from the hand that is holding the pump, push the lifted portion of the ring forward until it is completely detached from the pump.
-
To reassemble your device, follow these instructions in reverse order.
