Trackpad Cable Disconnect

Geschrieben von: Spencer Day
  • Kommentare: 1
Trackpad Cable Disconnect

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

Keine Schätzung

Einleitung

This is a prerequisite-only guide! This guide is part of another procedure and isn't meant to be used alone.

  1. lquDimvZWHVcGkIF
    lquDimvZWHVcGkIF
    MrBPlfJiyDeCh3Xy
    OCFESWwSM6pujQaM

    • Before you begin, discharge your battery below 25%, as a charged lithium-ion battery can be dangerous if accidentally punctured.

    • Power off your MacBook Air and unplug all cables.

    • Close the display and flip the laptop upside down. Keep the lid closed until you've physically disconnected the battery.

  2. UU3OByKvXHdj5Y2H
    UU3OByKvXHdj5Y2H
    IiKX3lhcjAkhlYAf

    • Use a P5 Pentalobe driver to remove the four 6.4 mm screws securing the lower case:

    • Two screws with a short threaded portion near the hinges

    • Two screws with a long threaded portion near the front of the MacBook

    • Throughout this repair, keep track of each screw and make sure it goes back exactly where it came from.

  3. dokINhbATeVrKXtr
    dokINhbATeVrKXtr
    TjUylLnpiHfWk2sV
    m6fVPUBtNhtoYYHl

    • Apply a suction handle to the center of the lower case's front edge.

    • Pull up on the suction handle with strong, steady force to create a small gap between the lower case and the frame.

    • Insert an opening pick into the gap.

  4. r1PnvK4dFMUcPiZ6
    r1PnvK4dFMUcPiZ6
    UN3KWFRyx5POUqii

    • During each of the next four steps, you should feel and hear one of four clips pop free. If you don't, insert your pick farther and try again.

    • Slide the opening pick to the bottom right corner to release the first clip.

  5. KMrlRCsbYnMvsCqN
    KMrlRCsbYnMvsCqN
    Dg1ll1M2bPNmSLkK
    An5h56yp4uJiaFdl

    • Slide the opening pick around the bottom right corner and three quarters of the way up the right edge to release the second clip.

  6. MRa4fHfEoRr5JYMB
    MRa4fHfEoRr5JYMB
    XwX31uUFXvSVQAYu

    • Insert the opening pick in the original gap created in the middle of the front edge.

    • Slide the opening pick to the bottom left corner to release the third clip.

  7. BZcYxSnwP3LMtOMu
    BZcYxSnwP3LMtOMu
    ToKEaQbPAPCvXQKB
    kNvutCH2F4W6dDSA

    • Slide the opening pick around the bottom left corner and three quarters of the way up the left edge to release the fourth clip.

  8. JxjCoOqbtL6riXKd
    JxjCoOqbtL6riXKd
    bXZHWpvubTHOOBVP
    AuNBkdMIobCVlYIC

    • Firmly pull the lower case away from the hinges one corner at a time to separate the four locking tabs.

    • Slide the cover—don't pull up.

    • This may require significant force. You should feel the tabs release as they unlock.

  9. FWeRBd2w3tTYyDWB
    FWeRBd2w3tTYyDWB
    dQ1idM13kbRF6NQC
    xiQGlvxvkRYsPqmh

    • Remove the lower case.

    • To reinstall the lower case:

    • Set it in place and align the sliding tabs near the display hinge. Press down and slide the cover toward the hinge. It should stop sliding as the tabs engage.

    • You can see if the tabs engaged by looking under the lower case.

    • When the sliding tabs are fully engaged and the lower case looks correctly aligned, press down firmly to engage the hidden clips underneath. You should hear and feel four distinct clicks as they snap back into place.

  10. DP2BQNffNgdKM1dp
    DP2BQNffNgdKM1dp
    ZNVTusG4UytALFiu

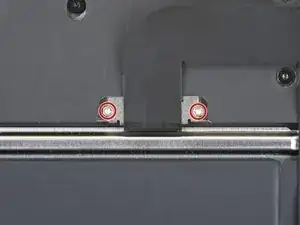

    • Use a T3 Torx driver to remove the two 1.5 mm screws securing the battery connector cover.

    • Due to screw variances, you may need to use a T4 Torx instead. Keep this in mind whenever you encounter T3 Torx screws during this repair.

  11. 2UVCE1lqOt3ViR3I
    2UVCE1lqOt3ViR3I
    JCSnLNLOpWoUBEM2

    • Remove the battery connector cover.

  12. TLUsv2wJrhFsJtLN
    TLUsv2wJrhFsJtLN
    TnjVCuugvheTD3RO

    • Use an opening pick to pry up and disconnect the battery connector.

  13. NSPxdeqtO1JUvbxB
    NSPxdeqtO1JUvbxB
    g41WQtMp5dLLJlDa

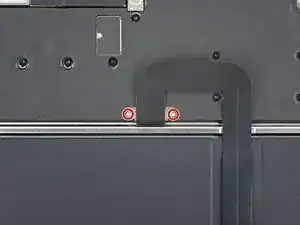

    • Use a T3 Torx driver to remove the two 1.5 mm screws securing the trackpad cable cover.

  14. tc4JdLh4FQjJvLAv
    tc4JdLh4FQjJvLAv
    IkHGQ2jCQ34fLaRM

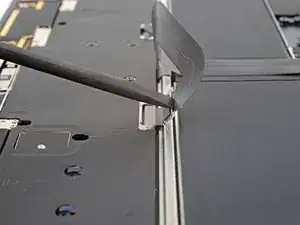

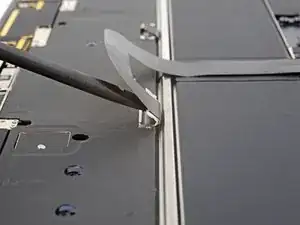

    • Use a spudger or your fingers to move the trackpad cable cover out of the way so you can access the press connector underneath.

  15. kDYIrfrnwEkqPsXa
    kDYIrfrnwEkqPsXa
    6CEOTmQeUPpoBYgX

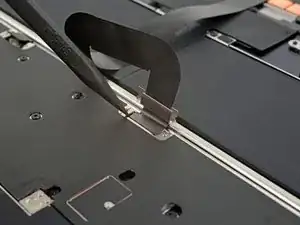

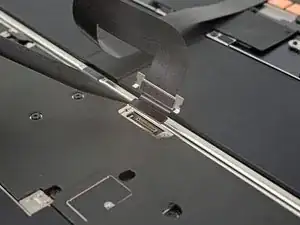

    • Use the pointed end of a spudger to pry up and disconnect the trackpad cable press connector.

    • To re-attach press connectors like this one, carefully align and press down on one side until it clicks into place, then repeat on the other side. Do not press down in the middle. If the connector is misaligned, the pins can bend and cause permanent damage.

Abschluss

To reassemble your device, follow these instructions in reverse order.
