The process for replacing the rim on the front and rear wheel are the same. This guide specifically shows removing the rim from the front wheel. To take off the rear wheel first reference the corresponding guide.
Werkzeuge
-
-
Stand facing your bike and locate the brake calipers.
-
To lessen the tension on the brake wire, place one hand on each caliper and push them closer together.
-
-
-
Unhook the brake wire in the metal tube from the brake wire holder on the brake caliper in your left hand.
-
-
-
Find the quick release lever located on the bikes fork to loosen the wheel from the frame.
-
Lift the lever from lock position 180 degrees until the open sign on the lever faces outward. Twist the lever while holding the pin on the opposite side of the wheel.
-
-
-

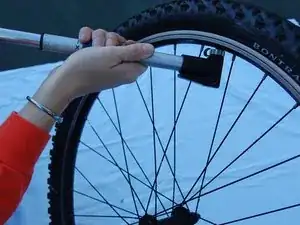

To deflate the tire, remove the cap and attach the pump head to the valve. You should then hear air flowing out from the tire.
-
-
-

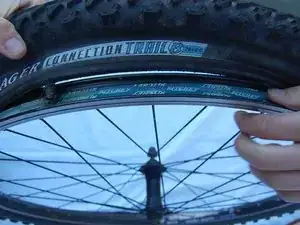

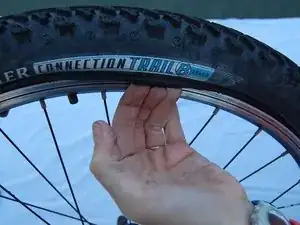

Pull the tire away from the rim until you can insert your fingers under the tire coping to remove it from the inside of the rim.
-

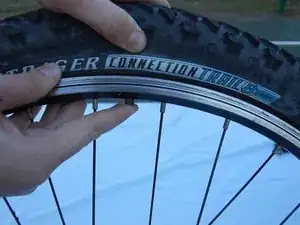

Slide your fingers (still under the tire coping) around the circumference of the tire until you completely remove the tire from the rim.
-
To reassemble your device, follow these instructions in reverse order.
