Triace A310 Brake Cable Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

This guide will show you how to replace an old or damaged brake cable. If you need to swap out your brake cable, this will help you replace it safely.

  1. OfkGH5gXrAAaSOGP
    OfkGH5gXrAAaSOGP
    bCtWasvxxJPVSaWi

    • WARNING: Be sure to follow each step carefully. Failure to do so may result in serious injury or death.

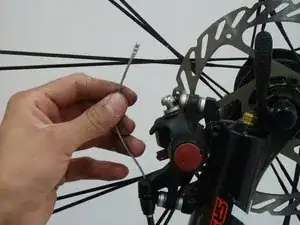

    • Unscrew the screw holding the brake cable in place with a 5mm allen wrench and pull out the cable.

  2. HuD2fAWFLAHNTNrP
    HuD2fAWFLAHNTNrP
    DZLEKUWrCWfLvD3Q
    qIcNfloXWk14qaXu

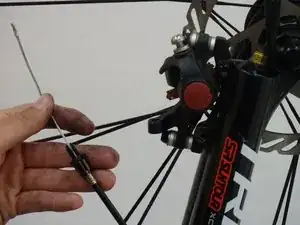

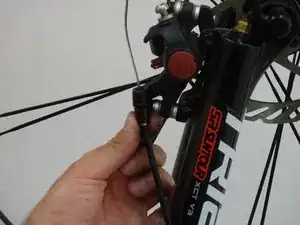

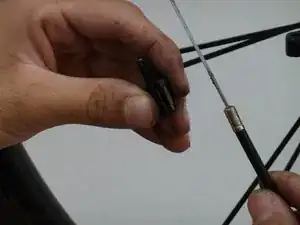

    • Unscrew the slotted brake cable cap on the rear tire and pull out the cable. Remove the cap from the cable.

  3. AxKBNOJYkMAMrfKH
    AxKBNOJYkMAMrfKH
    CuoLA5CUVhDEAMk2

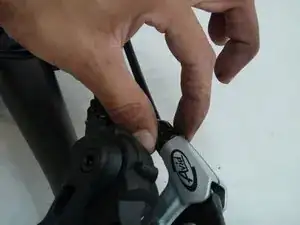

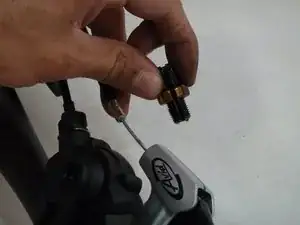

    • Unscrew the cap next to the brake handle and remove it from the cable.

  4. SERdqYHBinkyYDY2
    SERdqYHBinkyYDY2
    bVLyeiGGQsL5iuav
    jKilraPGYTe5Goyx

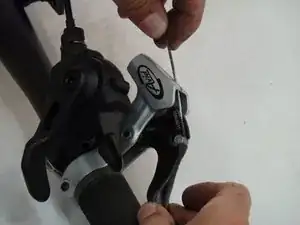

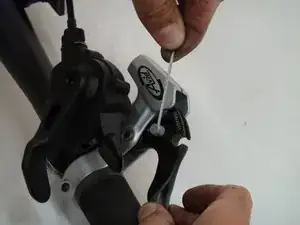

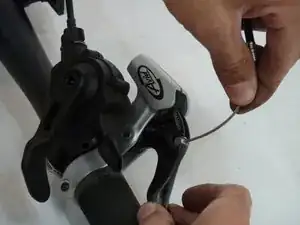

    • Pull up and out on the cable to remove the barrel nipple (the small cylinder at the end of the cable).

  5. yowBtJGgip2MVenU
    yowBtJGgip2MVenU
    j6LsRWjBKGQwNAnR
    WhgBoSKI4BW1PQdI

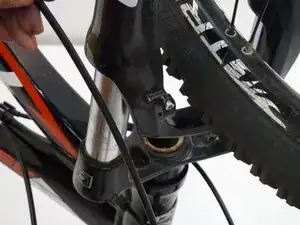

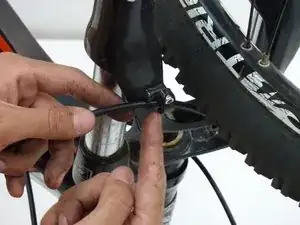

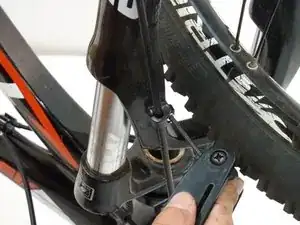

    • Unscrew the bracket located on the front tire with a 3mm allen wrench.

    • Rotate the bracket 90 degrees or until the opening is large enough for the cable. Remove the cable.

    • Note that if removing cable for rear brake, rather than unscrewing a bracket, you will unclip several "spring" clips. Keep track of clips.

    • Test your brakes in a low-speed environment to ensure that they work.

Abschluss

To place the new cable, follow these instructions in reverse order.
