Whether your chain is too big or broken, this guide will help you get your bike back on the trail.
Werkzeuge
-
-
Gripping the rear derailleur, pull the arm back, away from the front of the bike.
-
Notice how the derailleur becomes almost vertical in the second picture when compared to the first.
-
-
-
There should be enough slack, in the chain, at this point to remove the tire from the bike.
-
Remove the tire from the bike.
-
-
-

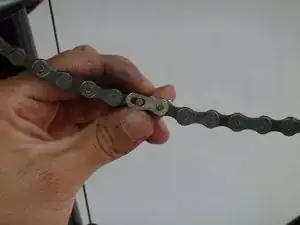

Locate the master link along the chain.
-

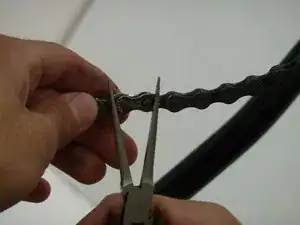

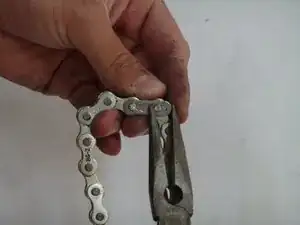

With pliers squeeze the two pins together so that the chain comes apart.
-
-
-

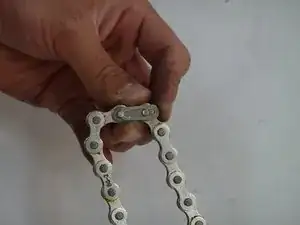

With a plier press the two pins together and remove the clip.
-

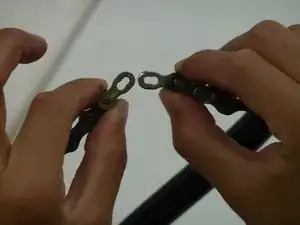

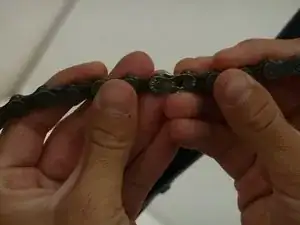

Once the clip is removed the chain should easily come apart.
-
-
-

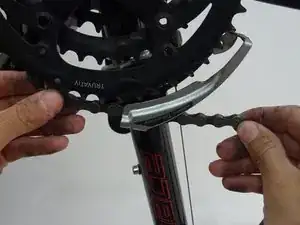

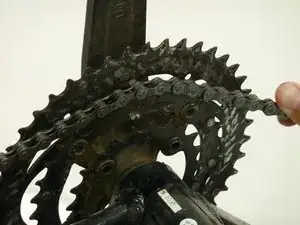

With the new chain, place it on the current gear that your bike is in.
-

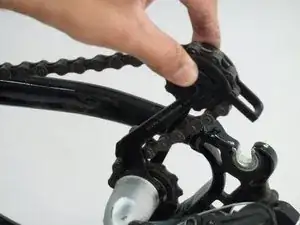

Thread one end of the chain through the derailleur from top to bottom so it is in the shape of a 'S'.
-
Next place the chain on the back gears, making sure that it is threaded through the guide.
-
-
-

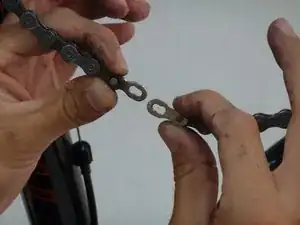

To reassemble the chain bring both ends of the chain together so that the pins on each one lineup.
-

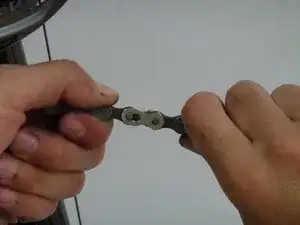

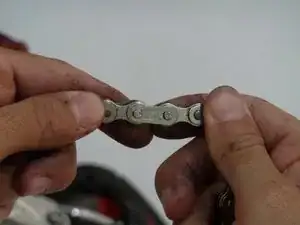

Grip the chain on both sides of the master link and pull.
-
-
-

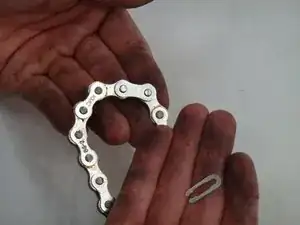

If your chain does have a master link clip replace the link around the two pins.
-

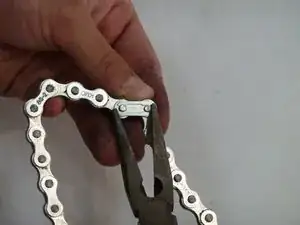

Use a plier to slide the clip back into place.
-
Once your chain is back together, you are ready to once again, hit the trails.
