Einleitung

If you need to remove your tire for any reason, this guide will help you safely remove it.

  1. TGKUg2KGBqbHKRTo
    • Begin loosening the tire by turning the quick release handle.

  2. SAgIvyHlHmtv1AaS
    SAgIvyHlHmtv1AaS
    OGXuAQpQbyqA5RB3

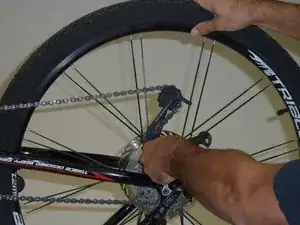

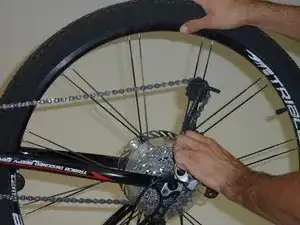

    • Gripping the rear derailleur, pull the arm back, away from the front of the bike.

    • Notice how the derailleur becomes almost vertical in the second picture when compared to the first.

  3. SojAmWFZaHYRIBOi
    SojAmWFZaHYRIBOi
    FMNAHemymXlxITuN

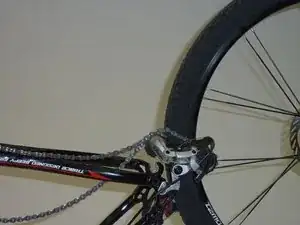

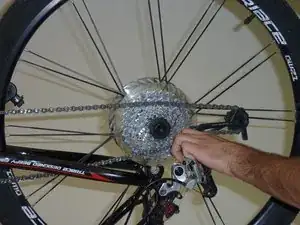

    • There should be enough slack, in the chain, at this point to remove the tire from the bike.

    • Note: You may need to wiggle the tire and chain around in order to create enough slack.

    • Remove the tire from the bike.

Abschluss

To reassemble your device, please follow these steps in reverse order.
