Trio AXS 3G Back Case Replacement

Geschrieben von: Javoy Ross
  • Kommentare: 0
Trio AXS 3G Back Case Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

The back panel contains the more important components of the tablet such as the speaker, camera, motherboard, and more.

  1. QwkPnA3AZKiGZGxp

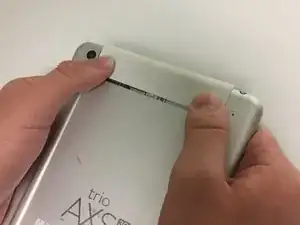

    • On the back of the device there is a white SD card case that shelters the screws that attach the back panel to the tablet.

    • Use your thumbs to slide up and off the small SD card case.

  2. G5fPVJA3koLYE5Ii
    G5fPVJA3koLYE5Ii
    wwM4BRGNpJLNKWwG

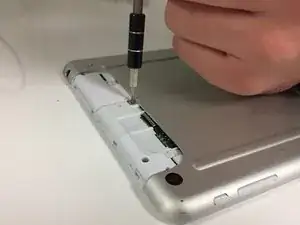

    • Using the Phillips Head #000, unscrew the 5 4mm and 3mm screws at the top.

  3. IAopWVlpFNRVH5f5

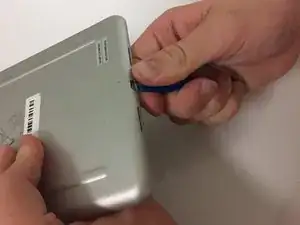

    • Insert a plastic opening tool between the back panel and the front of the tablet, and gently pry it away from the tablet.

    • Do not pry too hard as the screen is fragile and might crack.

    • It is best to start at the bottom of the tablet when prying the back panel off.

    • The volume piece will also dislodge when the back panel is removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
