Trio AXS 3G Battery Replacement

Geschrieben von: Michaela Causey
  • Kommentare: 2
Trio AXS 3G Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

If your tablet's battery no longer holds a charge, this guided will show you how to replace it with a new one.

  1. QwkPnA3AZKiGZGxp

    • On the back of the device there is a white SD card case that shelters the screws that attach the back panel to the tablet.

    • Use your thumbs to slide up and off the small SD card case.

  2. G5fPVJA3koLYE5Ii
    G5fPVJA3koLYE5Ii
    wwM4BRGNpJLNKWwG

    • Using the Phillips Head #000, unscrew the 5 4mm and 3mm screws at the top.

  3. IAopWVlpFNRVH5f5

    • Insert a plastic opening tool between the back panel and the front of the tablet, and gently pry it away from the tablet.

    • Do not pry too hard as the screen is fragile and might crack.

    • It is best to start at the bottom of the tablet when prying the back panel off.

    • The volume piece will also dislodge when the back panel is removed.

  4. 4W2uYsSHc1blDJCU

    • The battery is the large, silver square inside the tablet. It is connected to the motherboard by two wires.

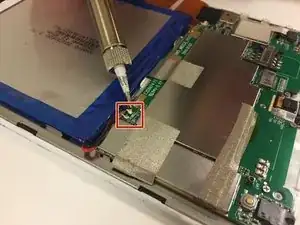

  5. 6O3oRpRo2YXhw14h

    • Use the soldering iron to remove the two metal ends that connect the battery to the motherboard.

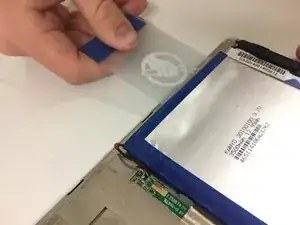

  6. B2pDHidHr1GCLUlL

    • Use the plastic card to pry the battery away from the device.

    • The battery is attached to the tablet by glue.

  7. B4vCcUlYxmbPPQ5e

    • Peel off the battery from the device to completely remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
