Trio AXS 3G Screen Replacement

Geschrieben von: Michaela Causey
  • Kommentare: 0
Trio AXS 3G Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

21

Zeitaufwand

Keine Schätzung

Einleitung

This guide will show you how to replace your tablet's screen.

  1. QwkPnA3AZKiGZGxp

    • On the back of the device there is a white SD card case that shelters the screws that attach the back panel to the tablet.

    • Use your thumbs to slide up and off the small SD card case.

  2. G5fPVJA3koLYE5Ii
    G5fPVJA3koLYE5Ii
    wwM4BRGNpJLNKWwG

    • Using the Phillips Head #000, unscrew the 5 4mm and 3mm screws at the top.

  3. IAopWVlpFNRVH5f5

    • Insert a plastic opening tool between the back panel and the front of the tablet, and gently pry it away from the tablet.

    • Do not pry too hard as the screen is fragile and might crack.

    • It is best to start at the bottom of the tablet when prying the back panel off.

    • The volume piece will also dislodge when the back panel is removed.

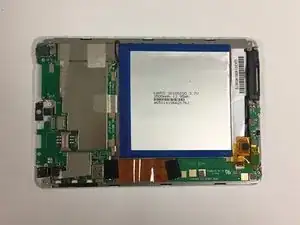

  4. gIUjAL4U5s3ZL1ol

    • The motherboard and battery will have to be removed to expose the metal panel underneath.

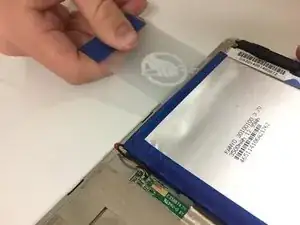

  5. BsWGvI6EtHY6yPgV

    • Use the plastic card to pry the battery away from the device.

    • The battery is attached to the tablet by glue.

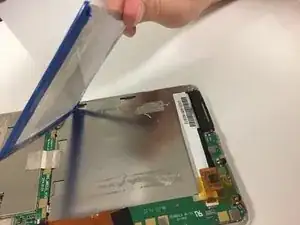

  6. oYKINWiXwY1CI4hp

    • Peel off the battery from the device and set aside.

    • The battery is connected to the motherboard by two wires. Be careful not to sever the connection.

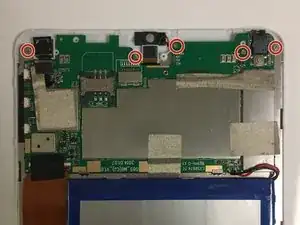

  7. ql5CUSLYLU3tTTFQ

    • Using a #000 screwdriver, unscrew the five 4mm and 3 mm screws connecting the top portion of the motherboard to the device.

  8. LVEpgQIUHZ6VjdQF

    • Disconnect the silver tape that attaches the motherboard to the metal panel.

  9. ACUJWKpmMRUglSlL

    • Disconnect the ribbon from the bottom portion of the motherboard.

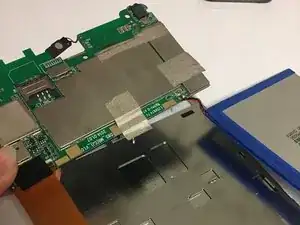

  10. SGH3LJ1tidfeBVxD

    • Remove the motherboard and set aside.

  11. PLoXfyuA4PSZcDZL

    • The smaller portion of the motherboard is located at the bottom with the speaker.

    • Using a #000 screwdriver, unscrew the three 3 mm screws that fasten the smaller segment of the motherboard to the tablet.

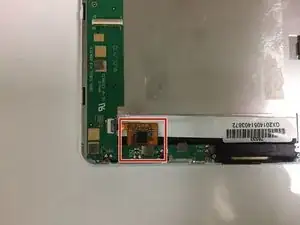

  12. 4QkvruchmS6hlkKZ
    4QkvruchmS6hlkKZ
    lpcypPQ3tfO4icB6

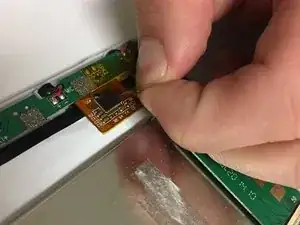

    • Located towards the bottom, carefully remove the yellow film.

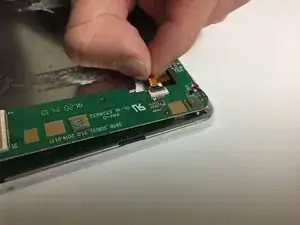

  13. YADma2x1iv4HtNqy

    • Gently disconnect the small ribbon found underneath the film.

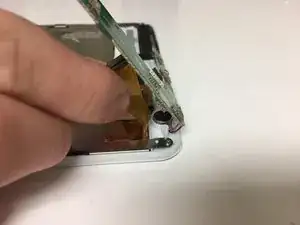

  14. FLJNDWoOWDjy5WlC

    • There is another connection found underneath this portion of the motherboard.

    • Lifting up the motherboard, disconnect the second ribbon found underneath.

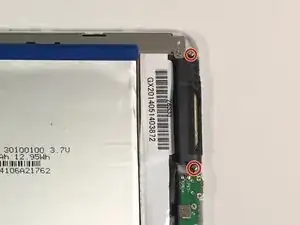

  15. 5xwfMWfSK445cM52

    • Unscrew the two 4 mm #000 screws.

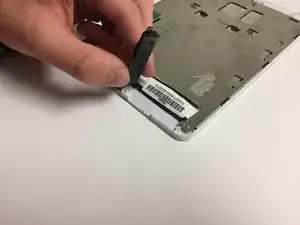

  16. LhEabMl4AP1cGWNN

    • Remove the speaker and bottom portion of the motherboard.

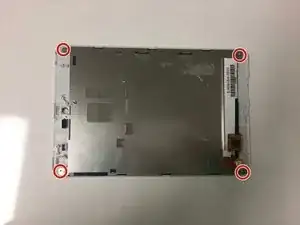

  17. xhMjsXraYxhJJsBi

    • At this stage, almost all inside components should be removed (as shown).

    • Using a screwdriver size #000, remove the four 4 mm screws found at each corner of the metal panel if you haven't gotten them already.

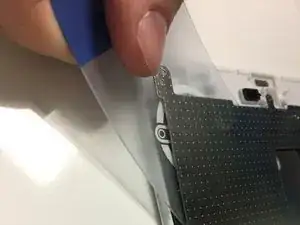

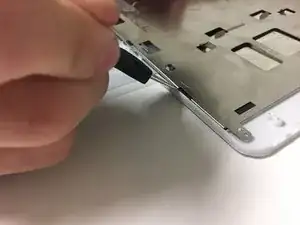

  18. ASFRZnRLWXEdiFJh
    ASFRZnRLWXEdiFJh
    UCjtEaE64LJIY2Mq
    YhjQHDisJGPlqXUJ

    • Use the plastic card to separate the metal panel from the screen component.

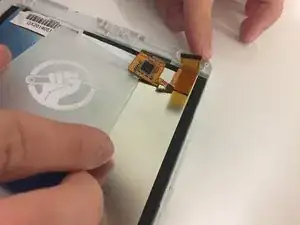

  19. DxCPKBasEEvSvSu2

    • Separate memory card from screen.

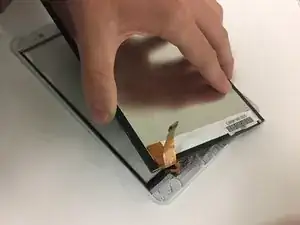

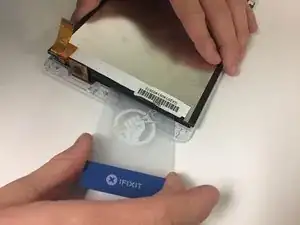

  20. kQbkTbiKpCENLTeC
    kQbkTbiKpCENLTeC
    rLlG2fdLAbFDqhkp

    • Use the plastic card to separate screen component from front panel.

  21. KZJWfAUf1bSN5sKg

    • Use the plastic card to separate the glass from the front panel.

    • Once the glass is removed, the new glass can be fitted to the front panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
