Trio Stealth G4 Back Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

The back panel assembly is an important part of the device as it protects all of the internal components of the tablet.

The disassembly is very simple and requires only a plastic opening tool. The latches keeping the back panel attached to the front casing can sometimes be a little difficult to separate, so don't be afraid to use some force.

  1. tGWF4jOYGO1wUsX2

    • Working on your device while it is turned on may result in electric shock. Be sure to shut down and unplug your device before you begin.

    • Flip your tablet over so that the back panel is facing up.

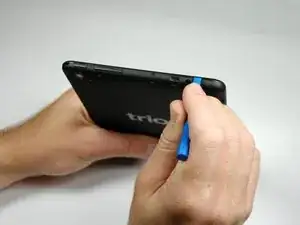

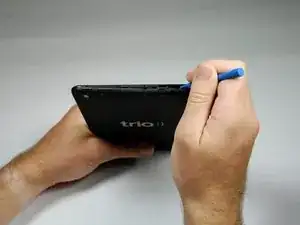

  2. CaDQPSLZdInAYfxW
    CaDQPSLZdInAYfxW
    COeHjHm65UJxs165

    • Use a plastic opening tool to gently pry the back panel assembly apart from the front casing.

    • Start on one edge of the device by inserting the plastic opening tool between the back panel and the front casing using a gentle rocking motion.

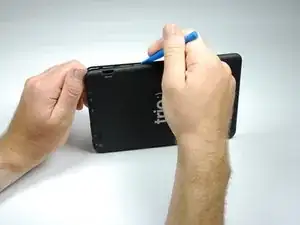

  3. XPypXjkH2YfjEHuf

    • Once you have successfully separated one edge of the back panel from the front casing, slide the plastic opening tool along the other edges to detach them as well.

    • The latches keeping the back panel attached to the front casing can sometimes be a little difficult to separate, so don't be afraid to use some force.

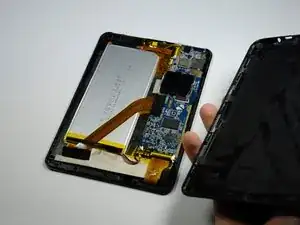

  4. cWxABpnQ5lCLcx1J
    cWxABpnQ5lCLcx1J
    cZNlQwFpVRIOV61P

    • Remove the back panel from the rest of the tablet and set it aside.

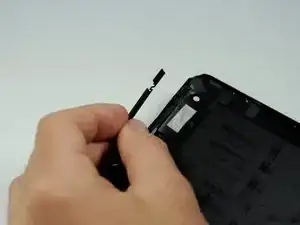

  5. PIV6AVKLdbZQsJSg

    • The plastic volume button cover may fall out when you remove the back panel. Set it aside.

Abschluss

To reassemble your device, follow these instructions in reverse order.
