Trio Stealth Pro 9.7" Rear/Front Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

  1. yFNgcKBeiuJGaPRu

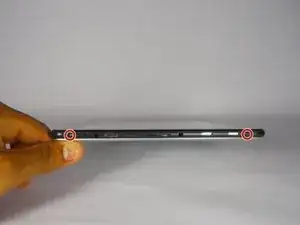

    • Remove 2 black 4 cm Phillips screws on either side of the bottom of the device.

  2. fgH5RVKJFBcWHPI4
    fgH5RVKJFBcWHPI4
    1T5g4FUfXxqyfBWW

    • Use the plastic opening tools and the spudger around the outside of silver metal back plate on the device to pry off the back plate.

  3. jfLItaXtRu6xVOBr
    jfLItaXtRu6xVOBr
    ZGIqCcWkOAk3E5Uc
    yTXQefqepUvKs1Ux

    • Use plastic opening tool to lift up black clip.

    • Gently pull out flex cable.

  4. I4AMYYgsBWoUKmhX

    • Remove 3 silver 4 cm Phillips screws holding down black plastic speaker cover.

    • Gently pull up on plastic to uncover clip connected to the camera.

  5. UkarRB2jsHkfdFrq
    UkarRB2jsHkfdFrq
    1E2t3sNF4CKqvTYq

    • Use the tweezers and gently lift up on the clip.

    • Remove the front/rear camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
