Tristar Blender Disassembly

Geschrieben von: koen merkx
  • Kommentare: 0
Tristar Blender Disassembly

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

7 Minuten

Einleitung

  1. Sf6hWHQM5fXxRPhA

    • The assembled mixer.

  2. fItG1A4Owp6OWIHP
    fItG1A4Owp6OWIHP
    HgDWRHSAPSXAkDkC
    ICvEUoacFOjOaEqs

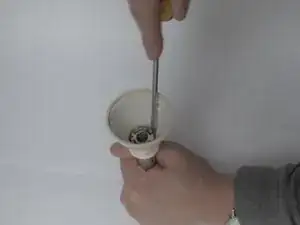

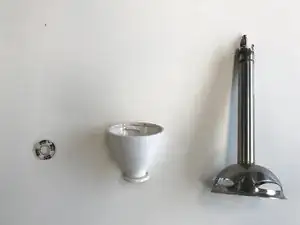

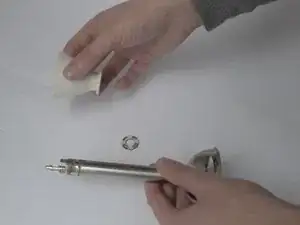

    • To disassemble the 3 parts you've got to disconnect the little ring. Use a screw driver to get the ring loose.

  3. f3B1EQZiH5I5ibEE
    f3B1EQZiH5I5ibEE
    DaQP3vPAvnjVPVKY
    D1IoQSBYgvwPDQ2Y

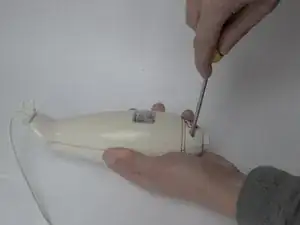

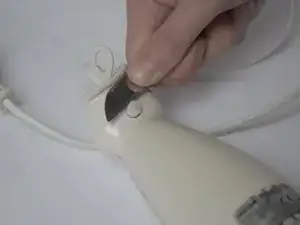

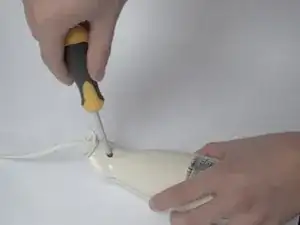

    • Unscrew 3 screws to open the casing.

  4. eoleEwfs2m6yROPp
    eoleEwfs2m6yROPp
    fnmGfgtIesgA5XSR
    iV3AnGEHWRuijXgp

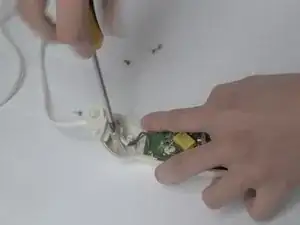

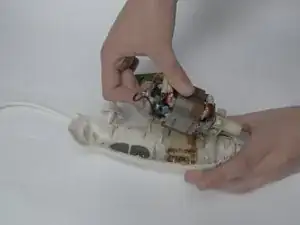

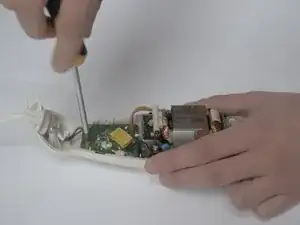

    • Unscrew 4 screws to disassemble the printplate and 2 to unscrew the wiring. Then you can lift the motor out by hand.

  5. b34OqJBHCYJSVZDu
    b34OqJBHCYJSVZDu
    joYnXflWBalLpRRy

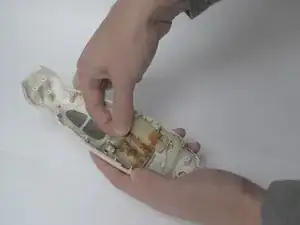

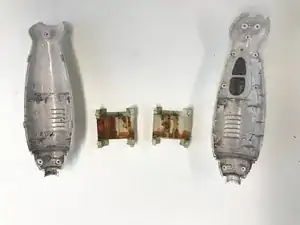

    • To disassemble the motor holders you can slide them of the casing.

Abschluss

un-screw 3 screw froms the housing
