Tristar Handmixer Gears Replacement

Geschrieben von: njjong
  • Kommentare: 2
Tristar Handmixer Gears Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

30 Minuten

Einleitung

Be aware that too much liquid might harm the engine of the product. For opening the product a spanner screwdriver is needed.

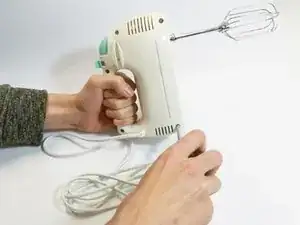

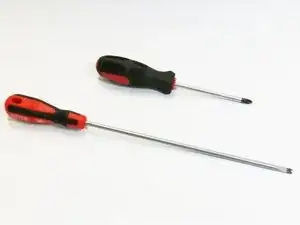

  1. wtxAVHmVTTYaViNw
    wtxAVHmVTTYaViNw
    DDKaUenGhsb5JjhA
    1vSyGvNZrGrpgsAW

    • Remove all the screws with the spanner and Phillips screwdrivers.

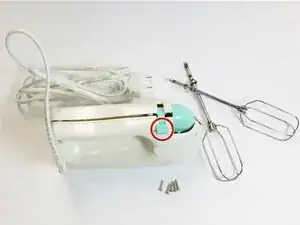

  2. 2RjaAB2LKBSJrgEi
    2RjaAB2LKBSJrgEi
    ZFWcOl2oalwSdoLo
    RfpNmxDmbBmTuTdK

    • Take off the mixer heads.

    • Push the eject button to do so.

    • Put the mixer in mode 5.

    • Gently open the mixer.

    • The spring might jump loose!!

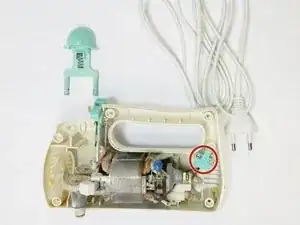

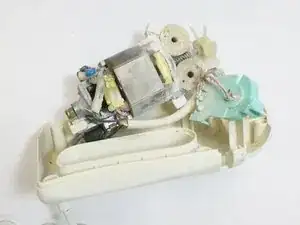

  3. CCcbaroWJwQxMxlK
    CCcbaroWJwQxMxlK
    fS3SwjKSHIH5GDOF
    wbSrNriULOIHBfKJ

    • Remove the eject button by carefully lifting it out.

    • Remove the cable holder using the Phillips screw driver.

    • Remove the screw holding the mode button.

    • Carefully lift out the electrical unit.

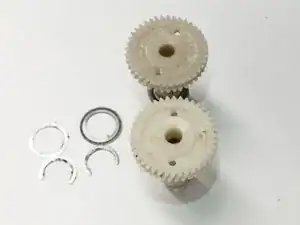

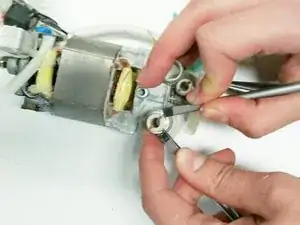

  4. OcZdMeByL2N2QDAg
    OcZdMeByL2N2QDAg
    QRo6YuRQL3Bvk2NK

    • Remove the locking rings from the back end of the gears.

    • Use 2 screwdrivers to apply force on both sides of the locking rings.

    • Lift the gears from encapsulant.

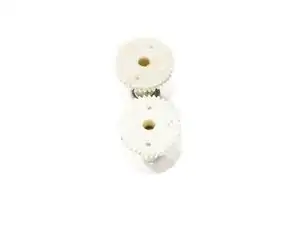

  5. jrZjTyUWJXiAB6O4

    • Replace gears.

    • Reassemble the mixer.

    • Happy mixing!

Abschluss

To reassemble your device, follow these instructions in reverse order.
