Program the board with the code in "Perfect Cell - Autosampler Testing"
-
Programming the board this way bypasses the modem and allows for automatic triggering upon resetting the open storm board without the use of the autosampler
-
-
-

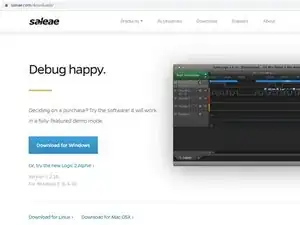

Open Saleae Logic Analyzer. Then, connect the Logic Analyzer to the computer using USB
-

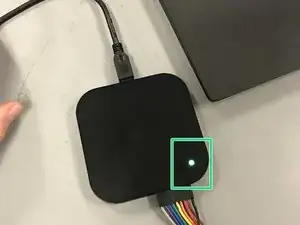

To ensure that the Logic Analyzer is connected to the computer, you should see a message at the top of the Saleae Logic Analyzer that says [Connected]. There should also be a blinking light coming from the Logic Analyzer (the light pictured is green, though any light emitting from the Logic Analyzer means it is connected)
-
-
-
Connect one of the probes (the colored wires attached to the Logic Analyzer) to the end of one of the headers (the piece of black plastic)
-
Once the probe is connected to the header, pull down on the header. Two small wires will come out
-
Keeping the header pulled down, attach the two wires at the end of the header to the desired wire to be tested
-
To reassemble your device, follow these instructions in reverse order.
