Troy-Bilt TB675 EC Air Filter Replacement

Geschrieben von: Brian Hall
  • Kommentare: 1
Troy-Bilt TB675 EC Air Filter Replacement

Schwierigkeitsgrad

Very easy

Schritte

6

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide outlines how to properly remove the air filter on a Troy-Bilt TB675 EC. The guide also explains how to clean the air filter.

  1. OcFpAQUlZqBZtRoT

    • Remove the air filter housing by turning the plastic screw counterclockwise with your hand.

  2. TkQexmXDSQBqZDav

    • Remove the air filter that lays beneath the housing you removed in step 1.

    • It is good practice to inspect your air filter for tears or other defects. If defects are found it is best to replace the air filter rather than to clean it.

  3. y11LGFTYP5m4bhfT

    • Clean the air filter thoroughly by spraying compressed air through the filter.

    • Be sure to spray the compressed air away from you in order to prevent injury.

  4. nKI5MxXNmBOIFyaU
    nKI5MxXNmBOIFyaU
    JEEiGyRuDHGJlB2j

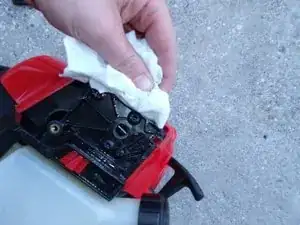

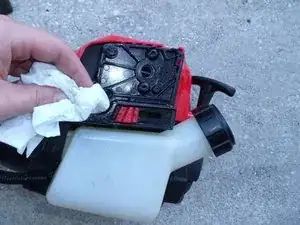

    • Wipe all oil and water residue around the air filter casing with a paper towel or rag.

  5. I5JTUljr5YvXbk2B

    • Place the air filter and air filter casing back in its original position.

    • Be sure the air filter and housing are lined up correctly.

  6. RwHKUG2XVxhJekLw

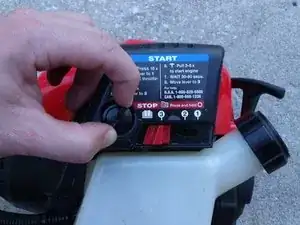

    • Complete the maintenance by turning the screw clockwise with your hand until it is fully secured.

Tinte & Feder

Brian Hall

Mitglied seit: 10/10/14

110 Reputation

Ein Kommentar

I believe you may have missed the small detail of giving us a part #.

That would’ve been VERY helpful.

Mark Henry Cooney -
