Flip over the controller.
-
Then, unscrew the 7 screws holding it together.
-
There are no screws hiding under the sticker, so there is no need to rip it off or punch a hole in it (like i tried to do in a previous attempt)
-
After removing the screws, just pull the back off of the controller. There aren't any cables attached to it.
-
-
-

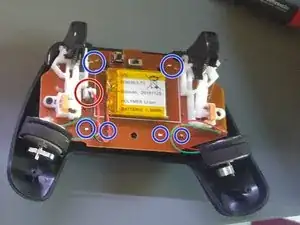

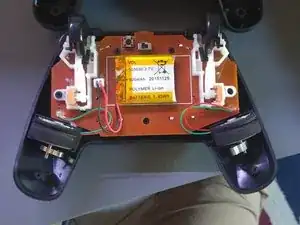

First, unplug the battery connector
-
Then, undo the 8 clips that hold the board to the front casing with the flathead driver.
-
After that, just lift the board up.
-

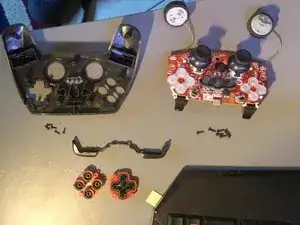

To remove the vibration motors, just pull them out, being careful not to break the wires.
-
-
-

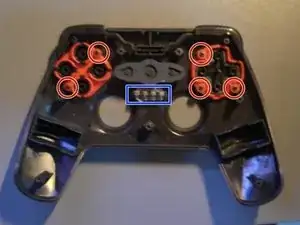

Remove the screws holding the D-pad and buttons to the front case, carefully prying them out with your flathead. To remove the shoulder buttons, just pull them out.
-
Unfortunately, the clear lenses through which the status LEDs shine are glued onto the case and are not removable.
-
To reassemble your device, follow these instructions in reverse order.
Ein Kommentar
Hello, I got this one (wired version) and I want to change joysticks as they are pretty much trash for analog control (joystick sensitivity). I want to use potenciometer ones as they are mostly used in premium brands such as microsoft and sony. What can I use? are there any things to be aware of? Any compatibility issues? I know how to disassemble it and solder it on. I just need to know which to get. I found ones from local shop called "Potenciometr Joystick PS4 JDM-055". ******Thanks for any response and have a great day :)
