Tungsten E Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

This is a repair guide for battery replacement.

  1. j65iNDV1ALQg2KZn

  2. ZGOcL2lTOVeYLQ1D

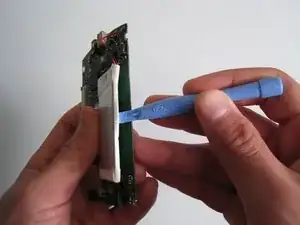

    • Begin to pry up the battery. It is fastened to the mother board using two sided tape.

    • Caution: the battery is connected by two wires.

  3. V4NZoGZnH66bR5Hp

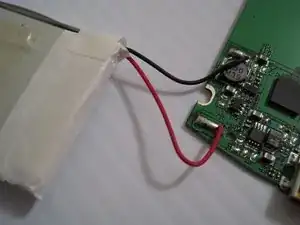

    • Remove the battery

    • Caution: Be careful not to tear the wires when removing battery.

  4. CLWcZwxT6FPPXIuj

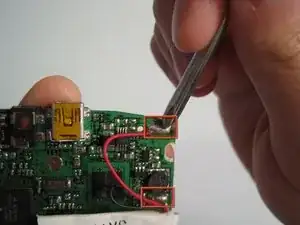

    • Using a soldering iron, disconnect the battery wires.

    • Note: the wires are soldered to the board.

  5. EtaiyQqKkAUfOZWy

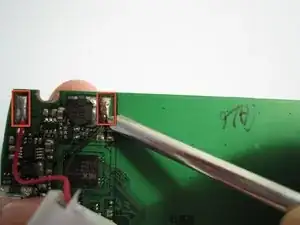

    • Take replacement battery and solder the wires to the board.

    • Take care to match wire colors as before.

    • Use double sided tape to attach battery firmly to board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
