Tungsten T3 Battery Replacement

Geschrieben von: Whitney
  • Kommentare: 3
Tungsten T3 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will take you step by step through the process of replacing the battery in the Palm Tungsten T3.

  1. Flv2UIudUIjBwFoX
    Flv2UIudUIjBwFoX
    tGdBVILHu21PhxBJ

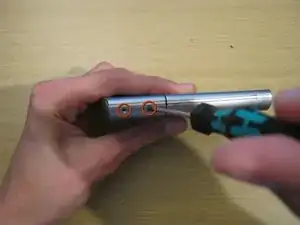

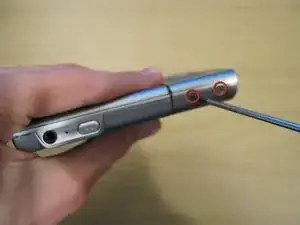

    • Remove the two Phillips #00 screws on either side of the device, on the sliding panel.

  2. eQ2ffNdSVXLIcEtI
    eQ2ffNdSVXLIcEtI
    lKCqivCvexpCLql1
    ZIdOBpp1qdiFldCD

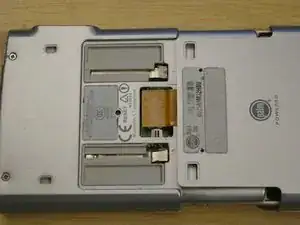

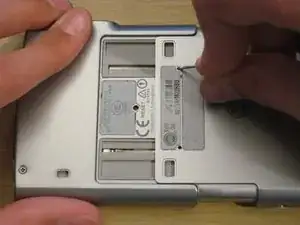

    • Slide out the function panel.

    • Insert a paper clip into the two marked small holes on the back and push downwards while pulling the function panel gently.

    • The connector for the buttons will be revealed.

  3. vLPnsMLPXvVRrxOl
    vLPnsMLPXvVRrxOl
    42PhODNr2MASDrtr
    cfjRQpdFMXBThotL

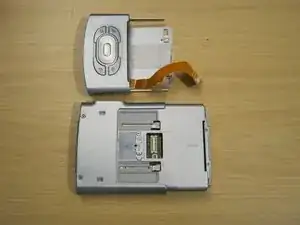

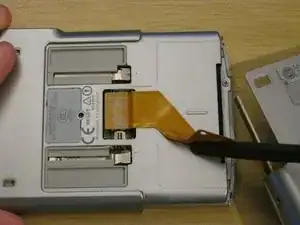

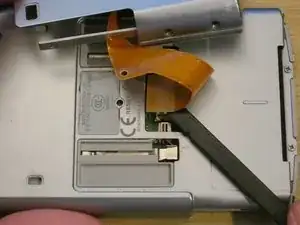

    • Gently remove the function panel from the device.

    • Be careful - it's still connected by the button cable. Peel the cable from the device carefully with a spudger - it is attached with a little bit of adhesive.

    • Carefully remove the connector and set the panel aside.

  4. nMwKYawQHRsAnVEB
    nMwKYawQHRsAnVEB
    PCMC4SYEVxZuj24W

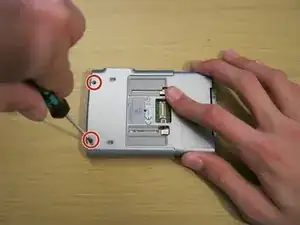

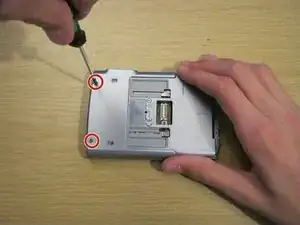

    • Remove the two Phillips #00 screws on the back of the device.

  5. 4QuIYvBuCwoWTMZh
    4QuIYvBuCwoWTMZh
    DftbJ33yGHIHNpjx
    jKMqWsNXObpMZ5rB

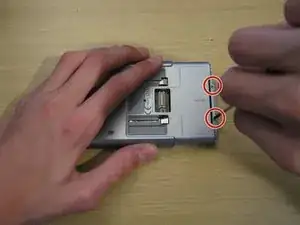

    • Remove the two small Phillips #00 screws at the other end of the device.

    • A small metal part will fall out of the device from the other side. Keep hold of this - you won't be able to put these screws back in without it.

    Every thing looks great why don’t p you show cost +delivery

    Keenleyside -

  6. JKLoQWJh4rcpuSoM
    JKLoQWJh4rcpuSoM
    f2gT6AFTYQTCRKrZ
    nApN1HJtdt3ZCPfA

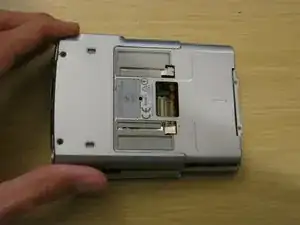

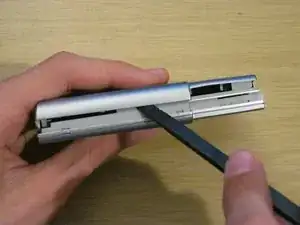

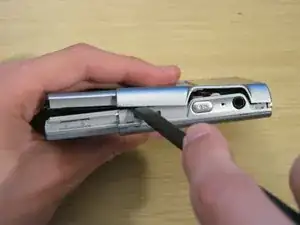

    • Using a spudger, gently separate the back casing from the rest of the device.

    • Be careful - the back casing contains the battery, which is connected by a very thin battery cable.

    There is an additional loose metal device which will or can come out. I believe it is to go at the bottom of the stylus hole. But there is no info in these directions. Ned to place it with the clip part at thebottom and make sure it stays there when reassembling. I put mine in upside down only to have to start over again to correct it. Author needs to edit or add a picture showing its correct placement.

    Curt

    curt_whitney -

  7. omSApAXEw1JiWsqh
    omSApAXEw1JiWsqh
    2WIXll1nNTcGfjhU
    y3xPDOlTgPhMxx4O

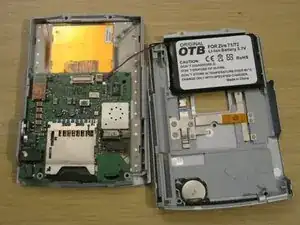

    • Lay the two halves side by side.

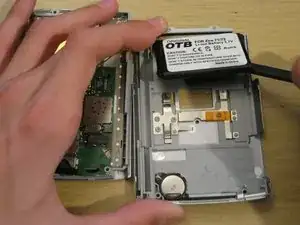

    • The battery is usually held to the case by a small amount of adhesive. Carefully peel it up with a spudger.

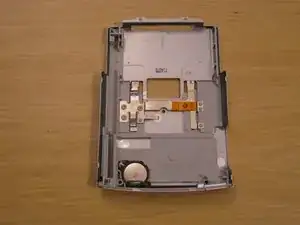

    • Lay the back case aside.

  8. GSVX4LfSZiBy2e6O
    GSVX4LfSZiBy2e6O
    56VTC4CTHRsgmaLW
    TmnkBA2tHpfPHWRQ

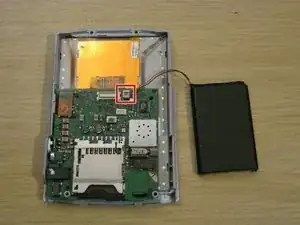

    • You should now be left with the front panel and the battery.

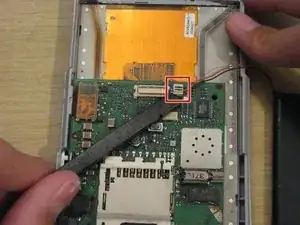

    • Gently disconnect the battery connector from the front panel. It's small and the pins are delicate, so be careful not to bend it.

    • When you install the new battery, you may find it useful to secure it to the back casing with some double-sided tape or even a small amount of glue.

  9. xAEmLKmoQ64bBcTg
    xAEmLKmoQ64bBcTg
    fcbkNlFIRwvNQpSL

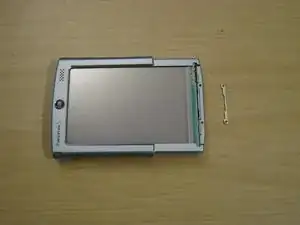

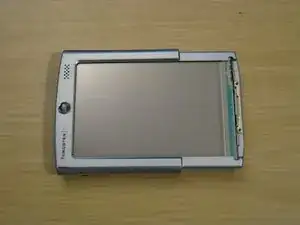

    • When reassembling your device, remember to place the small metal part on the front of the device and hold it while you insert the two small screws.

    • The screws won't stay in unless they're screwed into this metal part.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Whitney

Mitglied seit: 08/09/11

288 Reputation

Ein Kommentar

The only thing I would add is before replacing the battery, be sure to backup your device since disconnecting the battery will do a total reset.

bill.costa_01 -
