Turtle Beach Ear Force Stealth 500P Battery Replacement

Geschrieben von: Noah Franklin
  • Kommentare: 4
Turtle Beach Ear Force Stealth 500P Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

Use this guide to replace the battery in your Turtle Beach Ear Force Stealth 500P headphones.

  1. yeVcBP2FyGFlNwCH
    yeVcBP2FyGFlNwCH
    oah4uOfpOWAB5wlU
    cmpmnmXVcyUMTWvL

    • Remove the ear pad from the earphone by gently pulling the cloth pad outwards from the slot holding the cloth.

    • Work circularly until removed.

  2. aPxIEqYEelE6dgKf
    aPxIEqYEelE6dgKf
    NZuS6nnBWNBIKgIg

    • Using a Phillips #1 screwdriver, remove the four fastening screws that hold the blue plastic speaker mount in place.

    • Gently pull blue plastic from black housing by hand until separated.

  3. QAAIA5XZuhIupcOp
    QAAIA5XZuhIupcOp
    IXElnet4dQQgehxS
    jedgVDyVFHKy5dH1

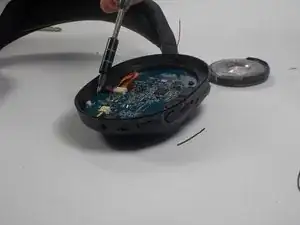

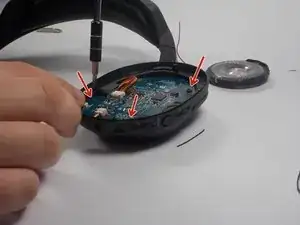

    • Use screwdriver tip J00 to remove three screws fastening circuit board to casing.

    My unit only had two screws attaching the circuit board to the headset body.

    Jerry Lundy -

  4. kZFgewwlHsEIHYvb
    kZFgewwlHsEIHYvb
    WeRBcXLiIO14x15R

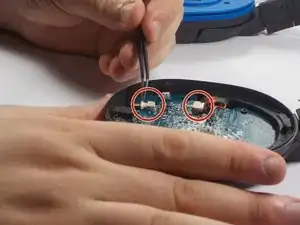

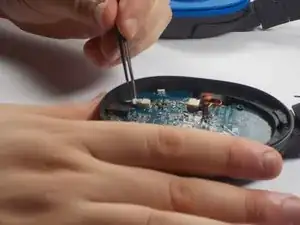

    • Use bent tweezers to remove two wire connector plugs from circuit board.

  5. oAfP3ZCg5CfHKjrb
    oAfP3ZCg5CfHKjrb
    3fJyXEAUIOv3OmR5

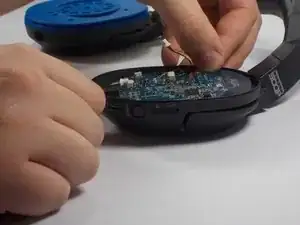

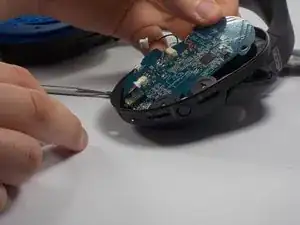

    • Circuit board will be free to be removed by hand. Use plastic pry tool to slide between casing and circuit board if needed.

  6. yjA2SbJDtWgQNJdF

    • Gently removed and flip over circuit board to reveal battery pack attached to the underside. Careful not to pull out wires running through headband.

  7. XU16csBKBssqgUxo

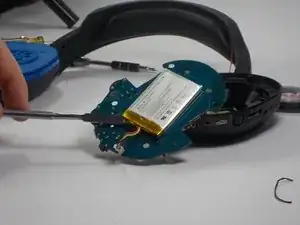

    • Use metal pry tool to slide between battery and circuit board to break up adhesive. Ensure the battery wire connector plug has been removed on front side.

  8. r6MRqRS6QWjeMjZJ

    • Battery will be free to be removed and replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Noah Franklin

Mitglied seit: 28/10/15

445 Reputation

3 Kommentare

Where can I get a replacement battery?

Jeremy Nocek -

You can look on Ebay or Amazon. You can find it by searching the model number: ( FT603048P )

The costs are like $20-$30.

If you look on Ebay under: ( 3.7v 603048 ), you can get the same battery without the connector for like $5.

William Smith -

hey i have a question, how i can repair the mute button? It does not work.

fiercecesar -
