Turtle Beach Ear Force XO One Speaker Replacement

Geschrieben von: Stephen Reilly
  • Kommentare: 1
Turtle Beach Ear Force XO One Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

If you're experiencing poor sound quality, you might need or want to replace your speaker. This guide shows the steps necessary to replace the speaker.

  1. WyXVcSKnljXXTvj1

    • Start with the ear padding facing up.

  2. gpNfMXpRpTvgDVgD
    gpNfMXpRpTvgDVgD
    i6yfTLDUssRw31kl
    qyRfNtXDdvYMdy3C

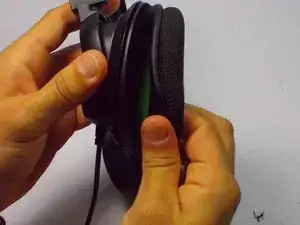

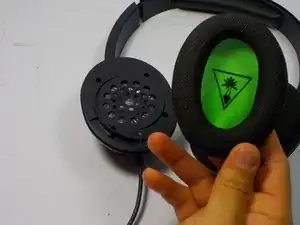

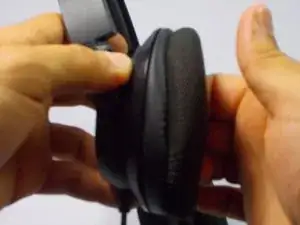

    • Remove the ear padding by separating the fabric piece from the plastic headphone piece.

    • The leather padding will slide off the plastic piece holding it in place. Don't be afraid to pull with a little force.

  3. VjweWYsPQyYJJaKy
    VjweWYsPQyYJJaKy
    JVBZXbmJTxXdMuVy

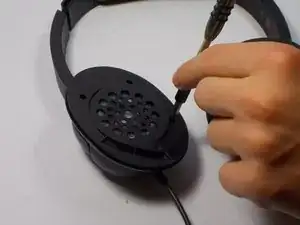

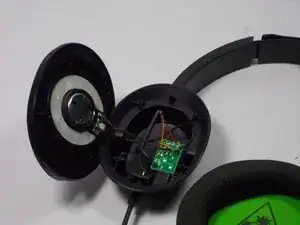

    • Use a Philips head screwdriver to remove the speaker cover.

    • Be careful the speaker is attached to the chip inside by wires.

    • The recommended screwdriver bit size is a PH 0.

    • Once the speaker cover is removed, the wires can be cut or de-soldered.

    • Remove the speaker.

    • Insert the new speaker

Abschluss

To reassemble your device, follow these instructions in reverse order.
