Einleitung

The windscreen is designed to prevent dust and moisture from getting into the microphone. It is held onto the microphone by a single 0.4 cm long Phillips head screw attached by a mounting bracket. Due to its fragile design, the windscreen can easily be torn, but it can quickly be replaced with the help of this guide.

  1. VtmTBtUjOkupYgaG
    VtmTBtUjOkupYgaG
    viDAF6IfsIsYtHHo

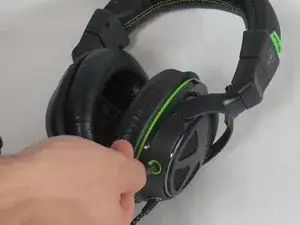

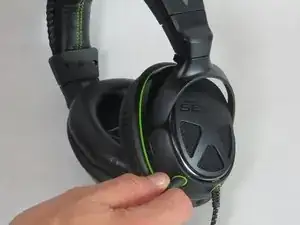

    • The microphone is a separate piece. So, unplug it from the headset.

  2. qGLhoXEnCYDfydX2
    qGLhoXEnCYDfydX2
    pBTv62CmmkqHU3EM

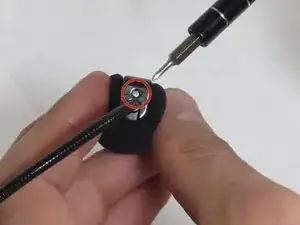

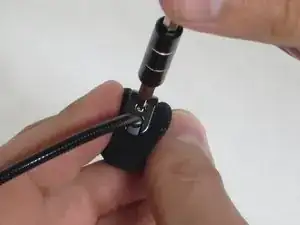

    • Using a Philips #0 screwdriver, unscrew the 4-mm-long screw that attaches the windscreen to the microphone.

  3. DVURgrZDKY4YaG2p
    DVURgrZDKY4YaG2p
    J1lfoxkdQmfIjHde
    nm6iGHfOEHK4gP43

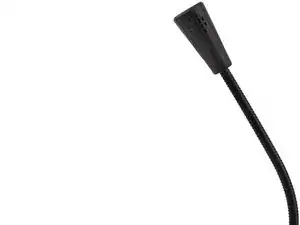

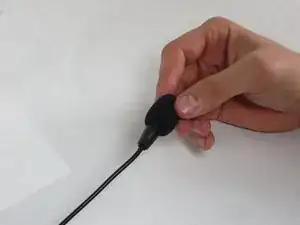

    • Now that the screw is removed, remove the slim metal plate at the base of the windscreen by gently pulling on the plate.

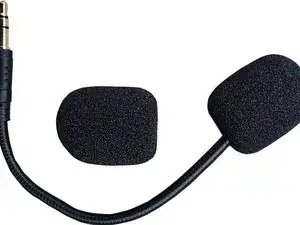

    • Then slide the windscreen off of the microphone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
