Turtle Beach Elite Pro Ear Cushions Replacement

Geschrieben von: Alexis Uribe

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

5 Minuten

Einleitung

The guide will assist users with replacing damaged ear cushions. It will show users how to replace a torn or worn out ear cushion with a new one.

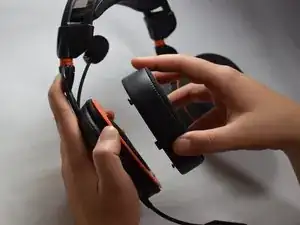

Firmly pinch ear cushion between thumb and forefinger.

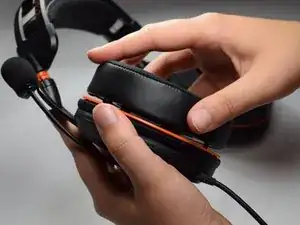

Using the hand not holding the ear cushion, grasp the orange plate that is below the ear cushion.
If the black rubber lining on the orange plate is grasped, then the rubber lining on the ear piece may tear.

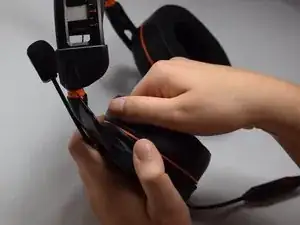

Rotate ear cushion counter-clockwise about half an inch.
The ear cushion should audibly snap out of place.

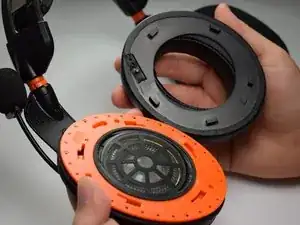

After it has audibly snapped out of place, lift the ear cushion off of the device.
During reassembly, rotate the ear cushion clockwise.

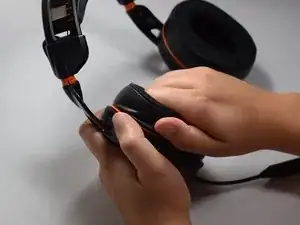

Using the new cushion, align the pegs located on both the orange plate and ear cushion.
Make sure that both the ear cushion and the orange plate have the same designation.
Once the pegs are aligned, push the new ear cushion in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
