Turtle Beach PX22 Speaker Replacement

Schwierigkeitsgrad

Difficult

Schritte

3

Zeitaufwand

20 - 30 Minuten

Einleitung

This guide shows how to replace an ineffective or broken speaker in a Turtle Beach PX22 headset. Soldering skills are needed for this job.

  1. TqWCHWckyZTd4NVX

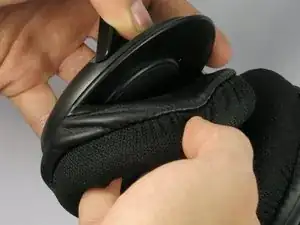

    • Use your fingers to peel off ear cushion by pinching and pulling off the leather.

  2. vyxnJeirMBT4VqIJ
    vyxnJeirMBT4VqIJ
    65LmHZhpFEaerpIm

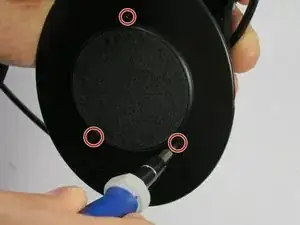

    • Use a Phillips #00 head screwdriver to remove the three screws located around the speaker (9/32 in length, 1/8 inch head).

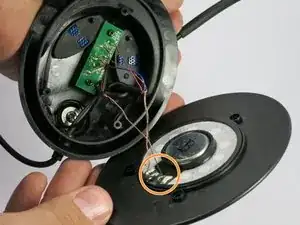

    • The housing will come loose. Take note of the position of the wires connected to the speaker.

  3. AIGxU16tnhtIHx1l

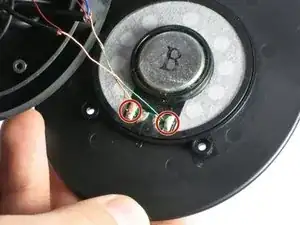

    • Desolder the colored wire and copper wires.

Tinte & Feder

James de Iturrondo

Mitglied seit: 18/03/15

709 Reputation

2 Kommentare

Does the speaker driver separate from the surrounding plastic disk, so it can be replaced with a like-sized driver, or is the driver plus mounting plate assembly sold as a replacement part?

Michael Merrell -

Where can a new speaker be purchased? It says that there are no parts required but in step 3 it says to have a new speaker. I can't find this online.

jn8ion -
