UP! Plus 2 Spool Holder Replacement

Geschrieben von: valerie boyer
  • Kommentare: 0
UP! Plus 2 Spool Holder Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

2 - 5 Minuten

Einleitung

The spool holder is a 3D printed part that holds the filament spool and the feed tube, keeping it stable and secure to the system. Be sure to print a spare spool holder prior to replacement.

  1. KhvPHQ6HrKGkWWPd

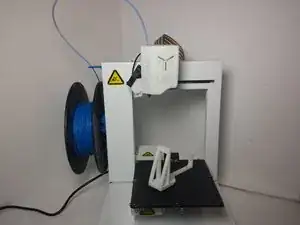

    • Before your spool holder breaks, 3D print a replacement to have on hand. If you didn't preemptively print a replacement you can still print without a spool holder. Just find some way of holding the spool so that it can rotate as the filament gets pulled off.

    • Download the file for a new spool holder here

  2. IFsbnOgDlGZ4csTx
    IFsbnOgDlGZ4csTx
    6scsJqrjQBEFC24a
    Nf6kevIG21hCdrKU

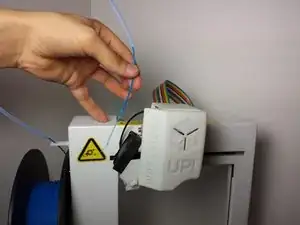

    • Go to "Maintenance" and tell the printer to withdraw the plastic filament from the extrusion assembly. Finish removing the filament by pulling upwards.

    • Wait for a "beeping" sound before removing filament.

    • Cut off any damaged plastic from the end of the filament.

    • Remove the plastic filament tube from the spool.

  3. Toq56WI2ShlVvanB
    Toq56WI2ShlVvanB
    kIyxZCXbgsCCnNnY
    GOLRDJJV4EC2EwWk

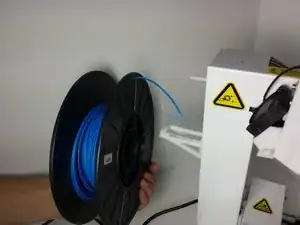

    • Remove the spool from the spool holder by lifting it up and taking it off.

    • Put the end of the filament through the hole on the side of the spool to keep it from unraveling.

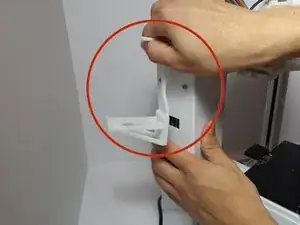

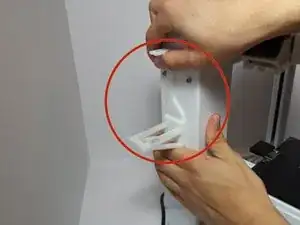

    • Slide the spool holder upwards, and then pull outwards.

  4. E3aeFqxur2cFIhHv
    E3aeFqxur2cFIhHv
    EFd1rRQZc233CxJA
    StFddIDGOxLCHDJ2

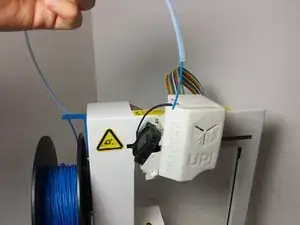

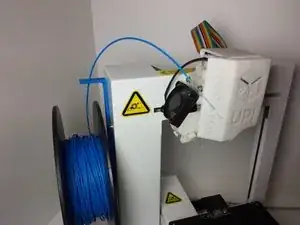

    • Place the new spool holder by pushing it inwards and sliding it down until it locks.

    • Repeat the steps in reverse chronological order to reassemble the printer.

    • The spool should be inserted in way that end of the filament points towards, not away.
