URPOWER V2 Ultrasonic Aroma Essential Diffuser Fan Replacement

Geschrieben von: Lilian Kay
  • Kommentare: 0
URPOWER V2 Ultrasonic Aroma Essential Diffuser Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

If your URPOWER V2 Ultrasonic Aroma Essential Diffuser is making a buzzing noise, use this guide to replace the Coolcox CC5010M12S fan. The fan can have a faulty blade that creates a buzzing noise when on.

Before beginning make sure there is no water in the device.

  1. C4MC1hPXC1QYSnQj
    C4MC1hPXC1QYSnQj
    ooqwHvtes1DnmxAx
    wrg2OvYheYTITMSM

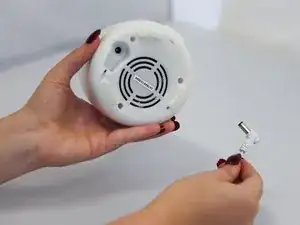

    • Unplug the Oil Diffuser.

  2. V5PUR1dwR4LQtvBQ
    V5PUR1dwR4LQtvBQ
    S6NsQa43qGTnUbOZ

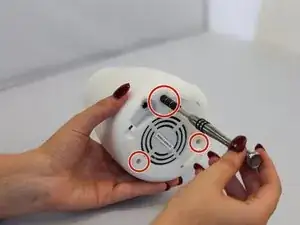

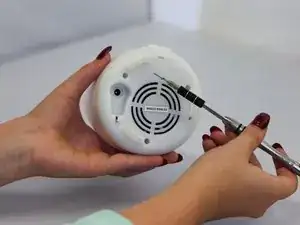

    • Using a Phillips #00 screwdriver from the iFixit kit, remove all three 10.0 mm screws on the bottom piece.

  3. aCGhGGLywUHmpUnO

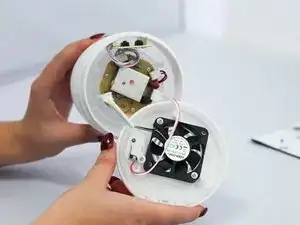

    • Remove the bottom piece of the Oil Diffuser.

    • Be careful not to lose the outside light and air buttons.

  4. uGUVjJwfw65ONBVV
    uGUVjJwfw65ONBVV
    J4vEZXLNnPSpQYlT

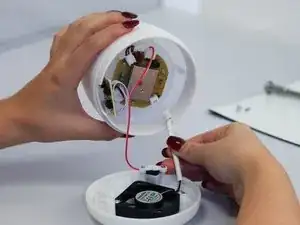

    • Unplug the fan power cord.

  5. mjFJVTJchLGYDuTN
    mjFJVTJchLGYDuTN
    xNwvkF3EZTSKVlLS

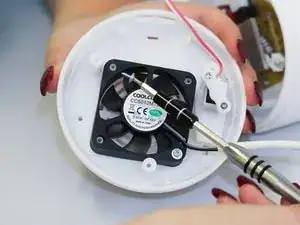

    • Using the Phillips #00, remove two 10.0 mm screws holding the fan onto the base of the diffuser.

  6. RJAHWWJIL6Nyp4Iw

    • Remove and replace the fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
