UTStarcom CDM8945vw Logic Board Replacement

Geschrieben von: Bilal
  • Kommentare: 0
UTStarcom CDM8945vw Logic Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

15 - 20 Minuten

Einleitung

Follow this guide to properly replace the logic board.

  1. ogOUt6MptENEFN4a

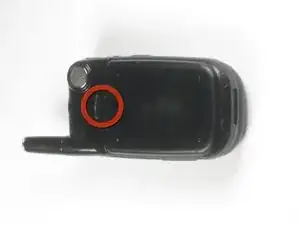

    • Push the highlighted button in the direction in which the antenna is pointing. The battery will release and pop up.

  2. PV6kkfPjMIfIZCfi

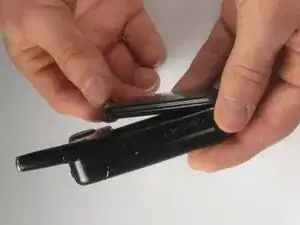

    • Remove the battery.

  3. usrD2HGg5rsmILCV

    • Identify the antenna. It is the extendable plastic component pictured here.

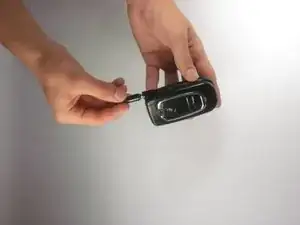

  4. MjjMeDfccWdK2rDs

    • Twist the base in a counter-clockwise motion to unscrew the antenna.

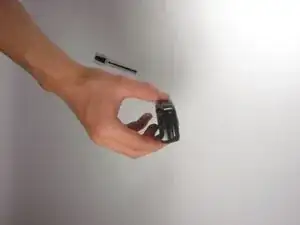

  5. yuOUDAIIAaRY1dbX
    yuOUDAIIAaRY1dbX
    DBsXeArZwjwohFjJ

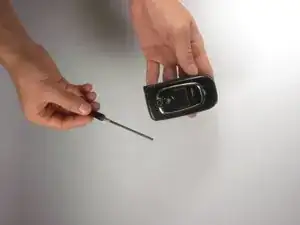

    • The antenna should slide right out of the phone when finished.

  6. vcWaBOqVqx1bBGls

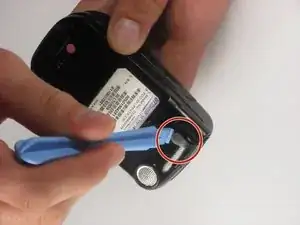

    • Remove the small rubber grommet using the plastic opening tool.

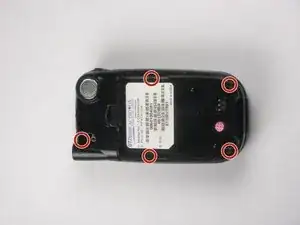

  7. FH4mDsdZYGcBJIse

    • Remove five screws using a Phillips #00 screwdriver.

  8. 3wo1acjIht2AfgQh

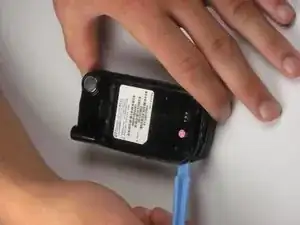

    • Use the plastic opening tool to separate the two pieces that form the outer case of the phone.

    • Prying the two pieces apart may be difficult. Carefully apply a moderate amount of pressure when attempting to separate the two pieces or else you will risk breaking them.

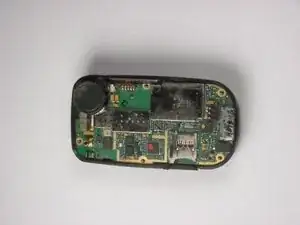

  9. XOSJuKjUoUdopbgT

    • Remove the back piece of the outer case.

  10. vqARNOcdNvMcwaDF

    • Remove the speaker using a plastic opening tool.

    • Apply a small amount of force when removing the broken speaker from the motherboard. If you apply a large amount of force, you may rip out the wires and damage the motherboard.

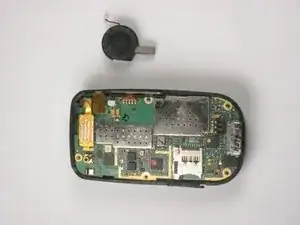

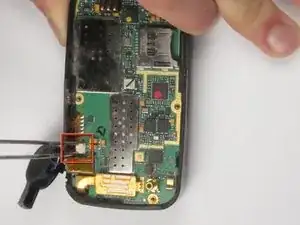

  11. rRSY5iBcCZQTl1rp
    rRSY5iBcCZQTl1rp
    MCSTWkAve5ylIuIW

    • Remove the wire attached to the speaker from the motherboard using tweezers.

    • Apply a small amount of force when removing the wire from the motherboard. If you apply a large amount of force, you may rip out the wires and damage the motherboard.

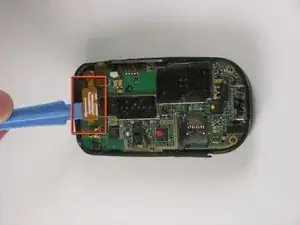

  12. IQb1OWCkVJtZmIAC

    • Detach the highlighted piece from the logic board using a plastic opening tool.

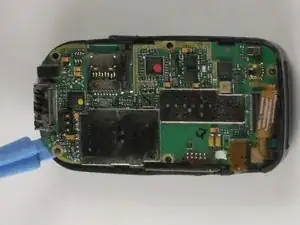

  13. 6YETHHiSkDYoNTFy
    6YETHHiSkDYoNTFy
    Uh3LFjkUcaRY5PVs

    • Remove the logic board from the anterior piece of the outer case using the plastic opening tool.

Abschluss

To reassemble your device, follow these instructions in reverse order.
