Udi Discovery U818A FPV Controller Battery Replacement

Geschrieben von: Raghda Al-Hmeyrat
  • Kommentare: 0
Udi Discovery U818A FPV Controller Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

This guide will show you how to replace the battery of your Udi U818A FPV drone controller. You will need a JIS #0 screwdriver to complete this task.

  1. hPw2sehmlXg2ac5d

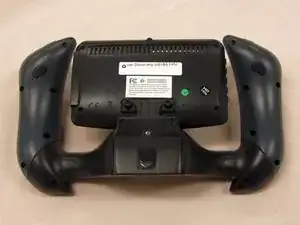

    • Turn the remote control over so that the buttons and joysticks are facing downward.

  2. uDQiAdhrYr4rEQO1

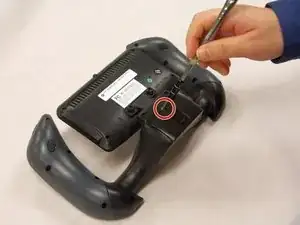

    • Using a JIS #0, unscrew the silver 4mm screw that holds the battery cover in place.

  3. V2bGjKPEohomjaDw

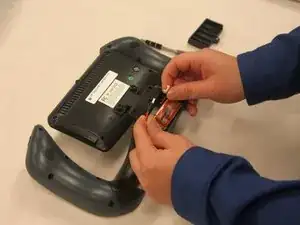

    • Open the battery access panel.

    • Disconnect the red and black wires.

    • Remove the depleted battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
