Einleitung
This guide will show you how to access and replace the battery of the ventilator.
Preparation to service:
- Make sure anaesthetic machine is OFF
- Disconnect the machine from power supply
- Gain access to ventilator housing from guide below
For more information on replacing the battery, please refer to page 29 in the service manual.
Werkzeuge
Ersatzteile
-
-
Make sure ALL gas supplies are disconnected and the system has been purged, and make sure all electrical supplies have been disconnected.
-
-
-
With one hand on the ventilator removal handle and one holding the lower half of the ventilator, pull up firmly on the handle so that the mounting slides up the slots in the frame.
-
-
-
Pull the ventilator housing towards you so that the mounting tabs come out of the frame slots rest the ventilator housing on the plastic skirt at the rear of the workstation as shown in the photo.
-
-
-

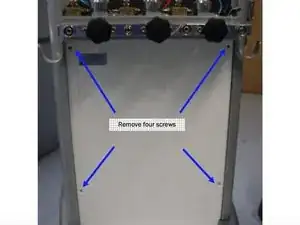

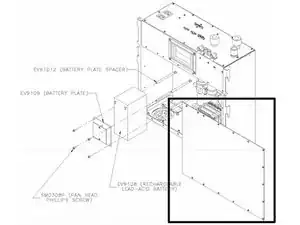

Remove the rear plastic cover by turning the single hex key retaining clip to free the cover.
-
-
-

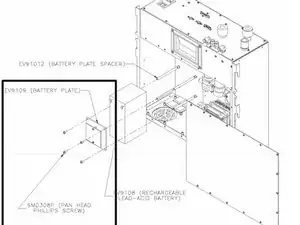

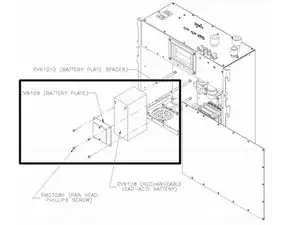

Remove the four pan head screws (SM0308P) holding down the battery plate (EV9109) and battery (EV9108) and remove the battery plate and battery.
-
-
-
Install the new battery in the same location and screw down the battery plate onto the battery plate spacers so that the battery is firmly held in place.
-
To reassemble your device, follow these instructions in reverse order.
