Umbrella Stretcher to Rib Joint Repair

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 25 Minuten

Einleitung

A really windy day can break an umbrella. In some cases, a joint will break, disconnecting the stretcher from the rib. You will be using a needle and thread in order to replicate the function of the joint that held the stretcher and the rib together. In addition, this guide will also cover how to sew a small rip on the canopy.

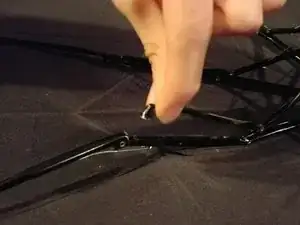

  1. 54DWHhhXlrj6eeRN
    54DWHhhXlrj6eeRN
    ywY4PYS4mLF3tVha

    • Take the broken part of the stretcher to rib joint.

    • Realign it with the rib assembly.

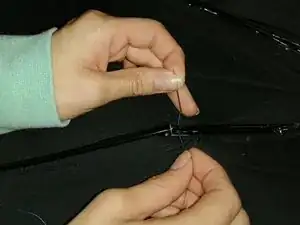

  2. oDVXYNRnOIMWOPCY

    • Take the needle and carefully pass it through one of the holes as seen in the picture.

    • Then pull it back to the same side you went through.

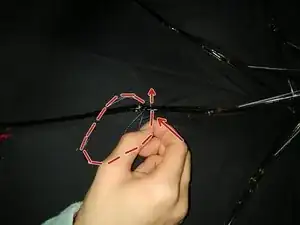

  3. 3GMsIVXvgXTYYARm

    • Take the needle and pass it under the stretcher (not through the middle).

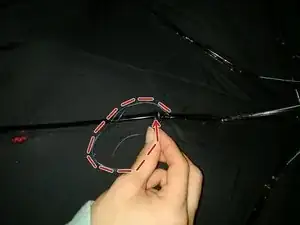

  4. rqGc6GQrKPfkfLld

    • Position the needle so that it faces the second hole from the same side you just went through in step 3.

    • Take the needle and pass it through the second hole.

    • Then position the needle so that it faces the first hole from the same side you just went through.

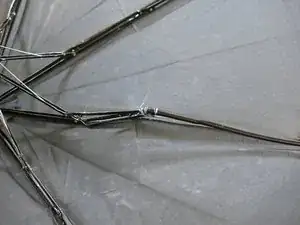

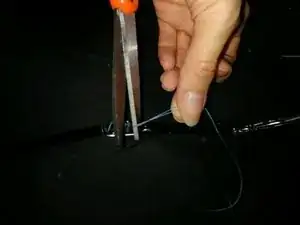

  5. JTBIGYW2IdWLvFEg
    JTBIGYW2IdWLvFEg
    UQ1GDW5BORwY3d1x

    • Repeat steps 2-4 until the two pieces are held tightly together.

    • Tie a knot to secure it.

    • Refer to step six if the rib punctured the canopy.

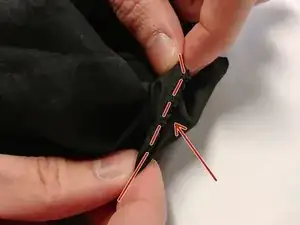

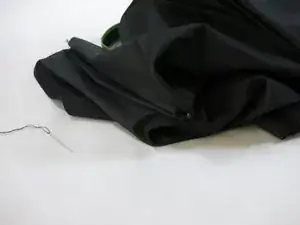

  6. UUU1VdKLnEB6FlGs
    UUU1VdKLnEB6FlGs
    WWkXuV232JHTlXhW

    • It is easier to sew when the canopy is closed

    • Take the hole, hold each end and pull outward into a line.

    • Make sure that it is in line with the umbrella canopy seam.

    • Take the needle and thread and form a hemming stitch (see Step 7).

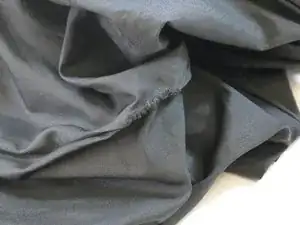

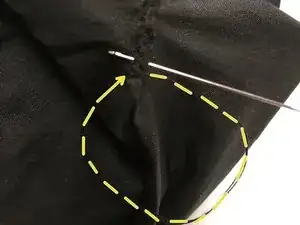

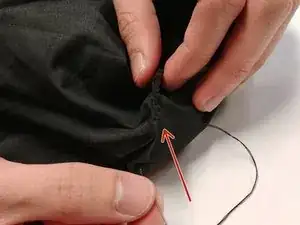

  7. HOT1GqJMWGcpmsPv
    HOT1GqJMWGcpmsPv
    DsS4meNaWqSOecmE
    XOFW1FLDMRN5JHc5

    • Begin with a threaded needle and start the stitch at one end of the hole and pull the needle all the way until just before the thread runs out.

    • Then loop back around and go through again.

    • Repeat until you reach the other end.

    • You can form the stitch multiple times to make it more secure.

Abschluss

The umbrella is fixed now, you may now use the umbrella freely.
