Unbranded UB-15MS10 Speaker Replacement

Geschrieben von: Jordan Turk
  • Kommentare: 3
Unbranded UB-15MS10 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

30 Minuten

Einleitung

This guide walks you through how to replace a broken speaker on your UnBranded Tablet.

  1. rMrAkBElgnjEEGHV

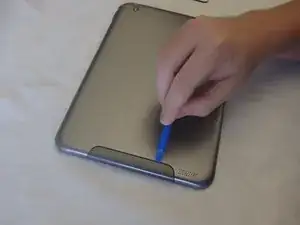

    • Remove the cover over the Micro SD outlet by using a plastic opening tool to pry open and push out the cover panel.

  2. EYr1yqm3uIHxWQl1

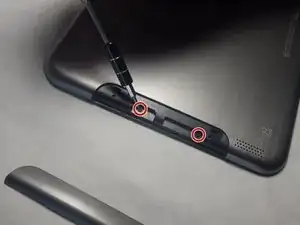

    • Remove the two 4-mm #0 screws from the inside of the Micro SD compartment.

  3. EqNW1tsRL2h6tl4y
    EqNW1tsRL2h6tl4y
    KmOjRaiW5AjsJTNe

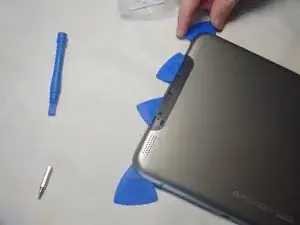

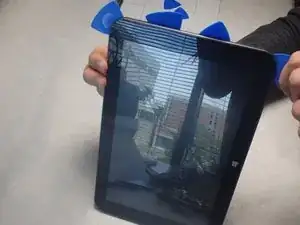

    • Insert blue guitar picks in the crease between the top and bottom panels starting on the same end as the Micro SD slot.

    • Inserting the picks directly under the Micro SD compartment was the easiest place to get started. It still requires some force.

  4. YhNAXKGwoCpKqUOn

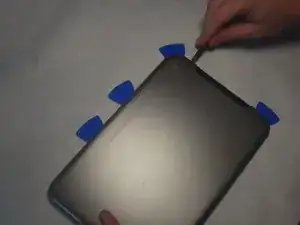

    • Insert the black spudger between the guitar picks in order to pry open gaps between the blue guitar picks.

    • As the gaps open, slide the guitar picks along the sides to separate the panels.

    Some close up shots of the seam that you're making sure not to miss internal tabs that hold the back on.

    Jorge Murphy -

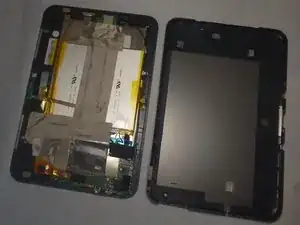

  5. CMTDLQrjvSWcylsY

    • Pry all four sides apart using the blue guitar picks and the black spudger until they can easily be pried apart by hand.

    Would love to see more photos on every single location of the snap tabs under the back cover. I don't want to snap any of the tabs off by pulling to hard around these snap tabs.

    Jorge Murphy -

    What is mean when you say by hand? "until they can easily be pried apart by hand." Using your fingers or a tool?

    David Gilleran -

  6. ZCgDsv3xQDdhUTfY

    • Remove the yellow tape from the speaker.

  7. X2g6n1kOjJB3RYlX

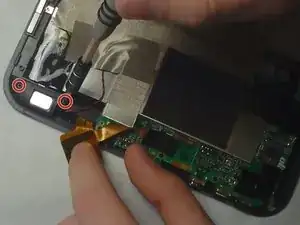

    • Remove the two 4-mm #0 screws holding the speaker in place.

    • The copper-colored plastic piece covering the speaker does not need to be removed from the device, move it to the side to reach the screws.

  8. bfJdls1H2e54Iwq5

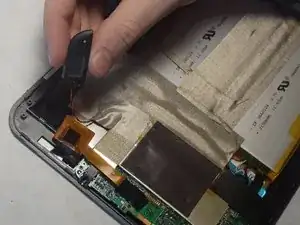

    • Remove the silver tape covering the speaker's black and red wires.

  9. cJv5LTtKFMPhLOmL

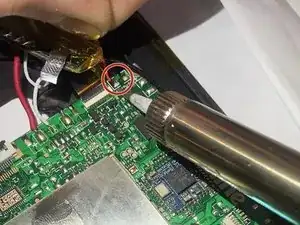

    • Reflow the solder of the black and red wires from the circuit board by using the soldering iron.

    • For more information about using a soldering iron click here.

Abschluss

To reassemble your device, follow these instructions in reverse order.
