Einleitung
To complete this guide you will have to disassemble the handset and use a soldering iron to replace the circuit board. Other than the soldering process, the guide steps are medium in difficulty to complete. After completing this guide, users should have a fully operating, handset circuit board and screen.
-
-

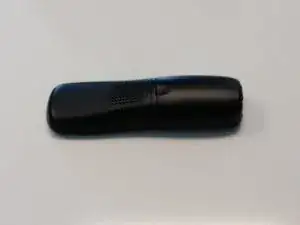

Slide the battery cover toward the bottom of the phone.
-

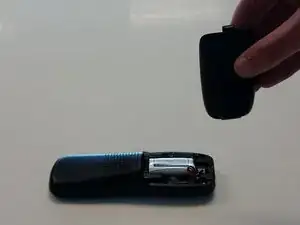

Lift and remove the back cover from the phone.
-
-
-

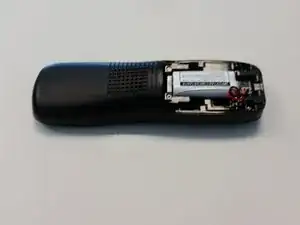

Remove the battery from its compartment.
-

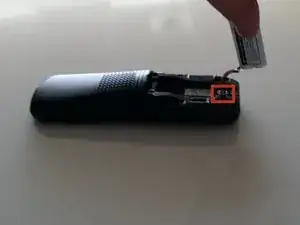

Pinch the end of cord where the battery is attached to the phone and pull up gently.
-
-
-

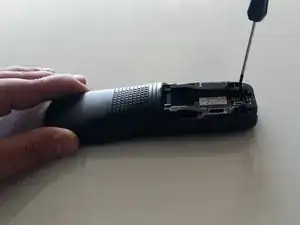

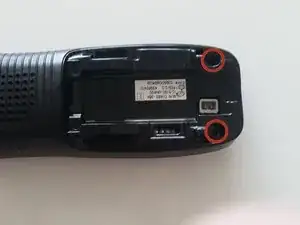

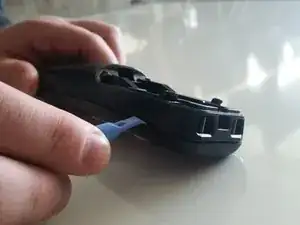

Use the plastic opening tool to carefully separate the two halves of the case.
-

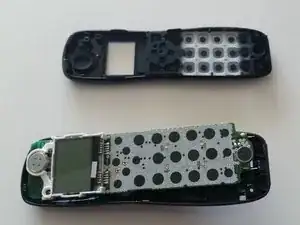

Slowly work around the entire case to fully separate the halves before pulling them apart.
-
-
-

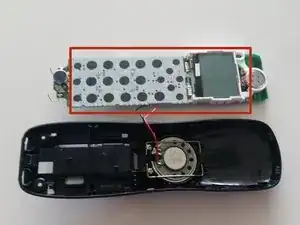

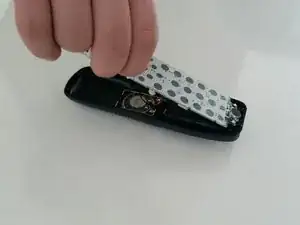

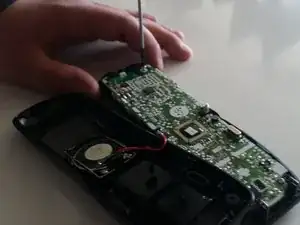

Carefully grasp either side of the circuit board and lift it straight out of the front half of the case.
-

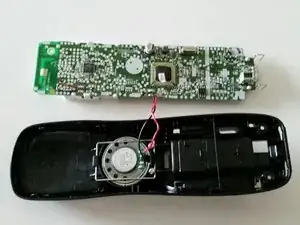

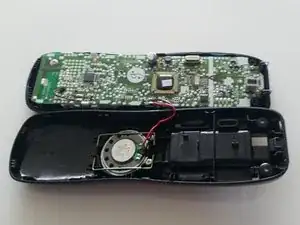

Set the board in the lower half of the case.
-
-
-

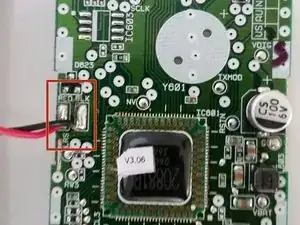

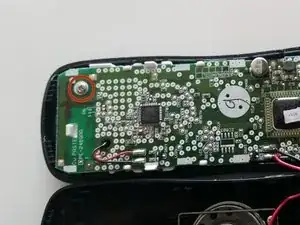

Using the desoldering braid and soldering iron, remove the solder around the cable for the speaker.
-
To reassemble your device, follow these instructions in reverse order.
