Uniden D1688 Bottom Circuit Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

Keine Schätzung

Einleitung

We are going to teach you how to remove bottom shell circuit board. By removing this, you will learn how to dissemble the speaker.

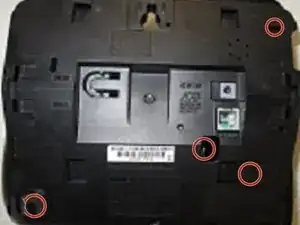

  1. kh56cPwhwSTPVMDh

    • Unplug the phone from the base by detaching the RJ-11 plug.

    • Flip the base upside down, and use the Phillips #01 screwdriver to unscrew the seven screws (Head size: 5.11mm, length: 8.6mm) on the underside of the base.

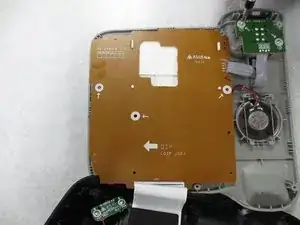

  2. GOAI5MBBFsWOHYxC
    GOAI5MBBFsWOHYxC
    xBWvtsep5QSDomAV

    • Using the spudger, separate the top shell of the base from the bottom shell from the base.

    • Use care when separating the base so the ribbon cable between the top shell circuit board and the bottom shell circuit board is not damaged!

    • Lift the top shell off the bottom, and you have successfully opened the phone base.

  3. LCxUi3FPqgJXwrAX

    • Unscrew the 3 screws(Head Size: 4mm Length: 8.6 mm) from the top shell circuit board.

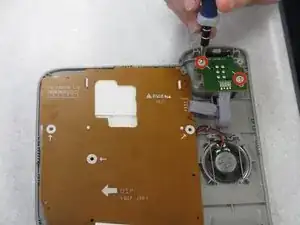

  4. X4sgRjyihK6AqmOK

    • Unscrew the 2 screws (Head Size: 4mm Length: 8.66) on the small circuit board in the top shell.

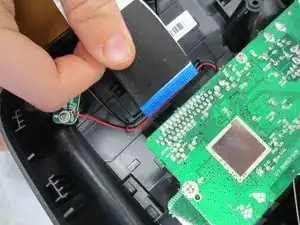

  5. vGoUayU4NRsGh2Hp

    • Disconnect the ribbon cable from the bottom shell circuit board.

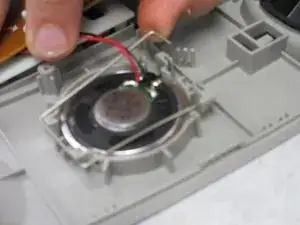

  6. SpqIpeKZSutyu4XZ

    • Release the speaker from the locking pin by pushing down on each ending side of the pin and pushing it away from the speaker.

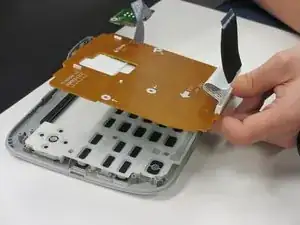

  7. rJZ1wArNmCUjMG6J

    • Remove top shell circuit board by lifting the circuit board out of the case

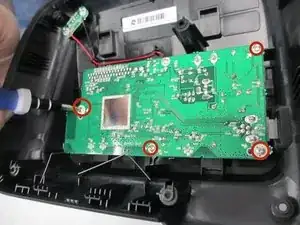

  8. YeYgHTBuATkcqM2X

    • Unscrew bottom shell circuit board screws(Head size: 4mm Length: 8.6mm).

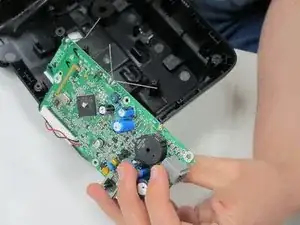

  9. Be3GgcZvRgYFRKNa

    • Lift bottom circuit board from the bottom shell.

Abschluss

To reassemble your device, follow these instructions in reverse order.
