This replacement guide will teach you how to replace the charging contact points of your phone.

  1. nxjQPBYrCvNdOWfb
    nxjQPBYrCvNdOWfb
    ZQNgMu3ETIsBJXW2

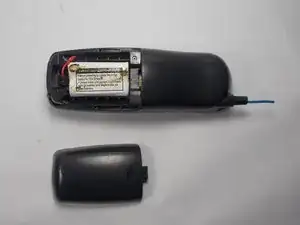

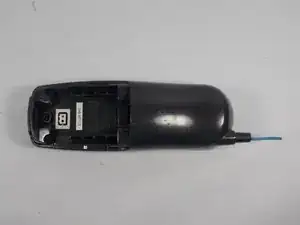

    • Your first step will be to remove the battery cover and the battery.

  2. mUWL1KENNj3qrNLY

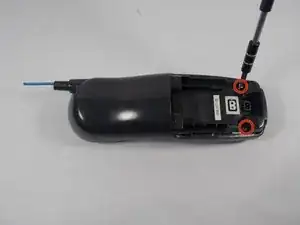

    • The next step will be to remove the two screws from the rear of the phone case.

  3. QRf23hjUmUJN4kRZ

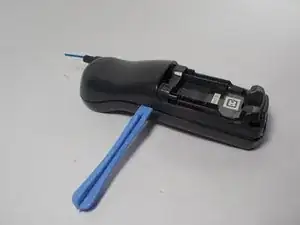

    • After that you will need to pry the back of the case off of the front part of the case.

  4. mB25EAPr3rLGVEDJ
    mB25EAPr3rLGVEDJ
    RSkmHcGMbKlVQAp2

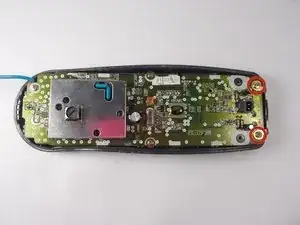

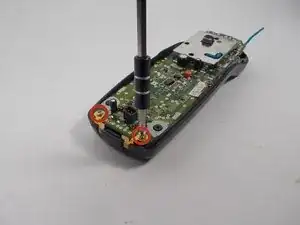

    • After removing the rear cover there will be two more screws to remove that hold each of the charging contact points. Once those are removed you can replace them with the new ones.

    • When replacing the charging contacts, they only go on one way, but it is useful to note how the original ones were on.

    • Reverse these steps in order to reassemble your phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
