Einleitung
The TCX905 consists of a two part shell. The back shell is where the battery and back speaker are, the front shell includes the buttons and the screen.
Werkzeuge
-
-

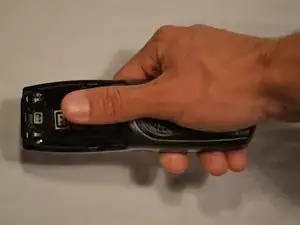

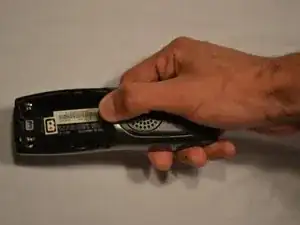

Starting from the top of the cover, slide down and away from the phone with your thumb
-

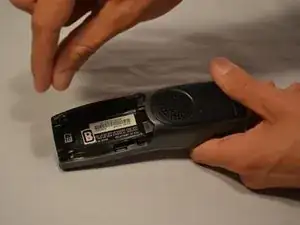

Lift battery cover off of batter and place it to the side
-
-
-

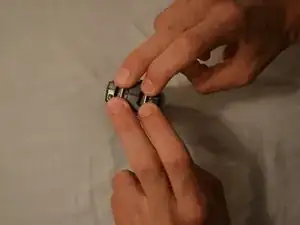

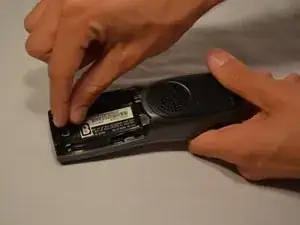

Once battery cover is removed, place your thumb and index fingers on the the wires near the receptacle
-
Gently pull straight up on the wires until a click is heard which signifies the battery is completely disconnected
-
Place battery pack to the side
-
-
-

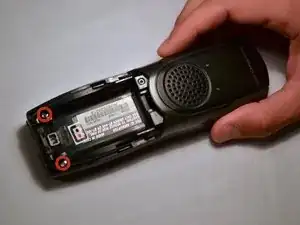

Remove the two 11mm screws inside the battery storage compartment using Phillips #1 screwdriver (located near the very bottom of the phone)
-
-
-

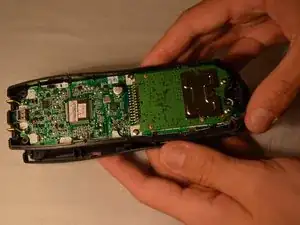

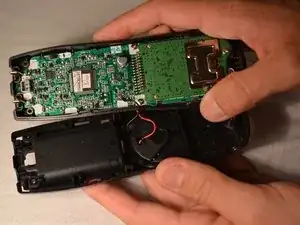

Gently open phone casing along the seam at the bottom of the phone using index and middle fingers of both hands
-
-
-

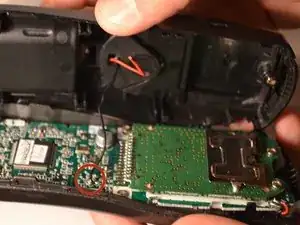

Ensure that wired connection between circuit board and back shell is not strained
-

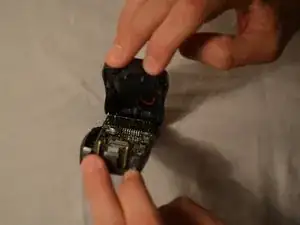

Fold the back shell underneath the front shell and circuit board
-
To reassemble your device, follow these instructions in reverse order.
