Uniden UTAB71 Screen Replacement

Geschrieben von: Ryan Jewell
  • Kommentare: 0
Uniden UTAB71 Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

8 - 10 Minuten

Einleitung

This guide will explain how to replace the screen of a UTAB71.

  1. 1OQA3ZYUReqppivu
    1OQA3ZYUReqppivu
    AZXyPsCqcbmiyeXn

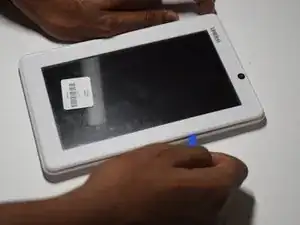

    • Use a pry tool to undo the clips that attach the two halves of the tablet.

    • Make sure to be gentle with the pry tool and work your way around the edges of the tablet slowly.

    • Make sure the tablet is powered off before prying open.

    • There are two power ribbons connecting the screen to the back of the tablet. Make sure not to put too much stress on them.

  2. FpGMGuC1fjrZxTMk
    FpGMGuC1fjrZxTMk
    VHluEvSFw2wPwQjW

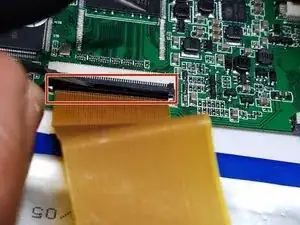

    • Lift off the black clip connecting the first power ribbon to the motherboard

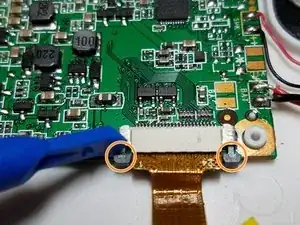

    • Undo the clips off the second power ribbon connecting the screen to the motherboard.

  3. KJyQkGqpkB5a4qjT
    KJyQkGqpkB5a4qjT
    ZRKCcOPMqPBGbKUv
    YLfUDsMjVB2DI1F5

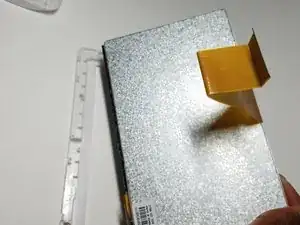

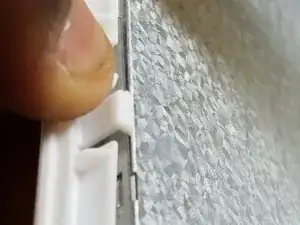

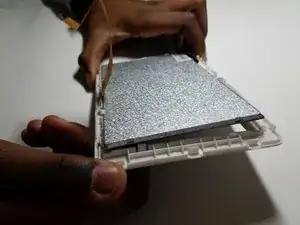

    • Slowly remove the screen component off the tablet by clipping the screen from the tablet outine

    • Do not apply too much pressure on the tablet casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
