Unjamming a X-ACTO Mighty Mite 19501X

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

A helpful guide for anyone that owns an X-ACTO Mighty Mite 19501X or any similar X-ACTO electric pencil sharpeners. Sometimes, pencil sharpeners can become stuck, either because of excessive use or because a wood sliver gets lodged in the spinning mechanism. This prevents the motor from spinning, which will in turn prevent your pencil from being sharpened. If your pencil sharpener becomes jammed or stuck with debris, this guide will help you to take the sharpener apart and remove the culprit of the jam.

  1. HeEumAf6umE6OwFC
    HeEumAf6umE6OwFC
    mp2FNDUSVHLfqrop
    oV5hf4T2O6CI4gNT

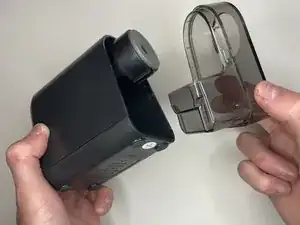

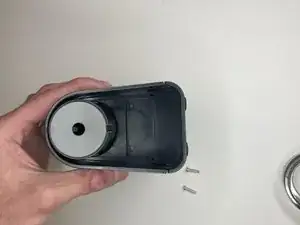

    • Remove the shavings container.

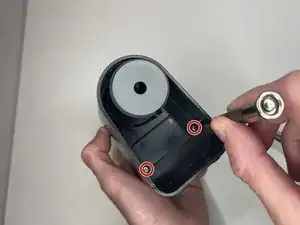

    • Remove the two 2mm Phillips screws inside with a Phillips #0 screwdriver.

  2. kYJaCESD3JR2fDNl
    kYJaCESD3JR2fDNl
    CfupJJcKFZOTVCuR
    yedCqVyjtQwAGNFh

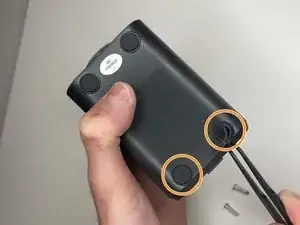

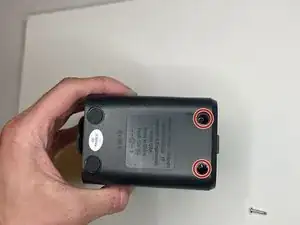

    • Flip the pencil sharpener to expose the bottom.

    • Use a pair of tweezers to remove the two round pads facing the back of the sharpener.

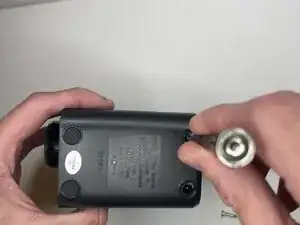

    • Remove the two 1.5 mm Phillips screws with a Phillips #0 screwdriver.

  3. Qq1e4QWSaPD6ekXQ
    Qq1e4QWSaPD6ekXQ
    AQmpXFYmXSiG2guT
    4i2jQCTMiDMiJCDj

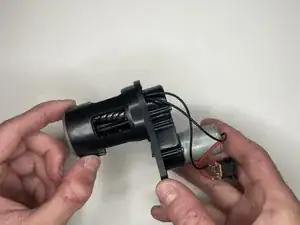

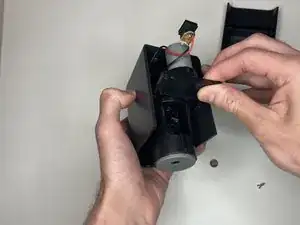

    • Pull the sharpener apart, exposing the internal components.

  4. whacxkWtU6aVP3H5
    whacxkWtU6aVP3H5
    VSAP2JciJUaELq3W
    T4oon2YyDMMra2c6

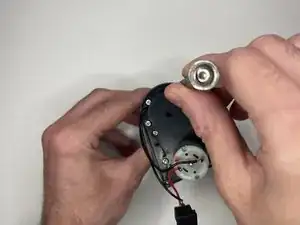

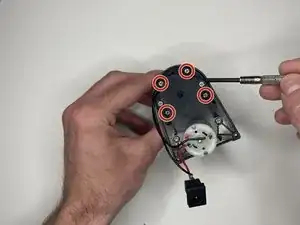

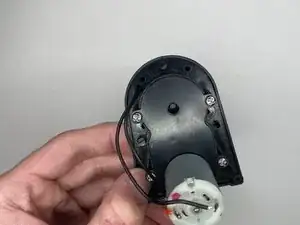

    • Remove the four 1 mm Phillips screws beside the motor with a Phillips #0 screwdriver.

  5. LAUsjJTQS4fE3HCb
    LAUsjJTQS4fE3HCb
    xolNKR3fIGBynbOi

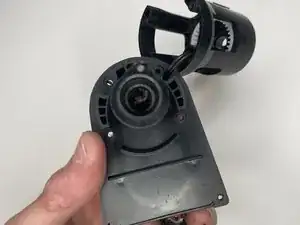

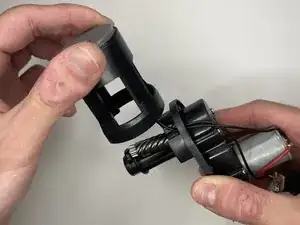

    • Lift the protective case, revealing the sharpener blades.

  6. NpxcQy3qFwhd3iEw
    NpxcQy3qFwhd3iEw
    BCuwBSbljvPuSEVM
    VWaogxrQMhoqQaC3

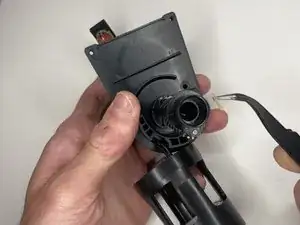

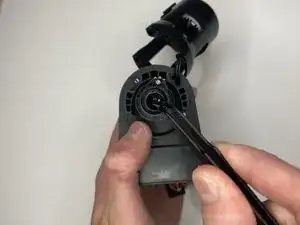

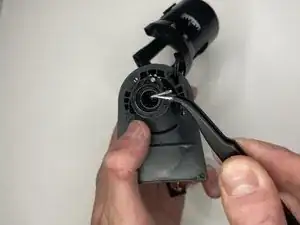

    • Remove any debris or wood shavings from the blades with your tweezers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
