Unnecto Drone M Disassembly

Place the phone facedown on a cleared work area

Remove the back case by applying moderate force to the indentation in the lower left corner of the case.

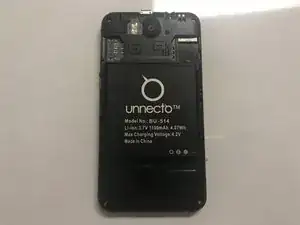

Grip the top right corner of the battery.

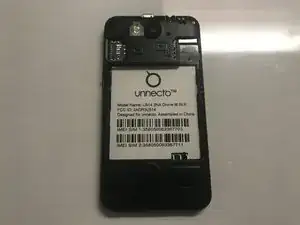

Remove the battery by pulling it outwards.

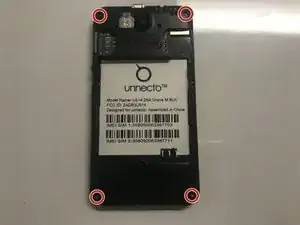

Remove the four screws on the back of the phone using a Philips 000 screwdriver

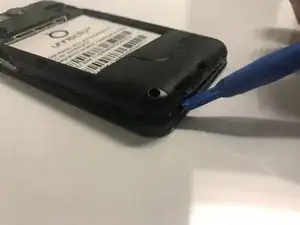

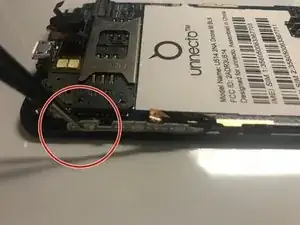

Separate the frame evenly using a plastic opening tool.

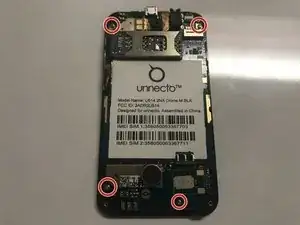

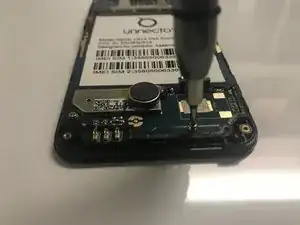

Use a Phillips #000 screwdriver to remove the four screws that secure the motherboard.

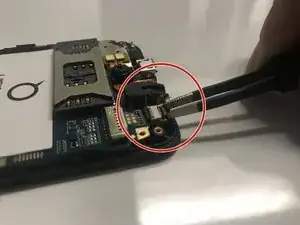

Disconnect the ribbon cable from the motherboard using rounded, spade-tipped tweezers.

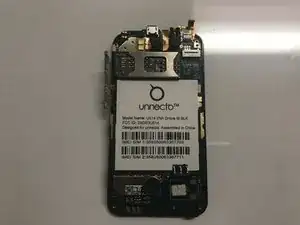

Peel the white circuit on left side of the frame by inserting fine-tipped tweezers between it and the frame.

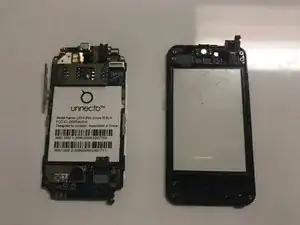

Set aside the circuit board from the screen protector.
