Upgrading your 2.0 GHz 13" Aluminum Unibody MacBook to a Backlit Keyboard

Geschrieben von: Nathanael
  • Kommentare: 44
Upgrading your 2.0 GHz 13" Aluminum Unibody MacBook to a Backlit Keyboard

Schwierigkeitsgrad

Difficult

Schritte

38

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

This guide is here to help you upgrade your Late 2008 2.0 GHz Aluminum Unibody MacBook to have a backlit keyboard without buying an entire new topcase. Keyboards can be purchased off Ebay for less than $75.

  1. OheOqOn6lNyjKCSM
    OheOqOn6lNyjKCSM
    qlImGnIwwSPLGcnO

    • Some 2.0 GHz A1278 MacBook Unibody logic boards do not have the necessary socket installed to accept the keyboard backlight ribbon cable attached to the upper case. The first and second pictures show logic boards with and without the socket installed, respectively. If your logic board does not have the backlight ribbon cable socket installed, the keyboard will work but the keys will not light up.

    • If your logic board does not have the socket installed to accept the keyboard backlight ribbon cable and you are installing a backlit upper case, simply tuck the keyboard backlight ribbon cable out of the way when you reinstall the logic board into the upper case.

    is it still possible to have a backlight keyboard, even if theres no socket installed?

    nightwalkerosfp -

    I would like to know as well. Can a socket be soldered to the board in this spot?

    metalman141 -

    I dont think so coz if apple havent soldered necessary driver chip and circuit for backlight, there is no need to solder that socket. That chip has to be on other side of the board

    Oleg R -

    Yes I believe it can as that is just power for the backlight I believe.... but I have never done this mod to a macbook without the socket.

    Nathanael -

    The socket for the backlight was snap off when I was removing the ribbon cable. Does anyone know where can I get a replacement for the socket?

    Ryan Lim -

    If you have the skill to solder a new connector on, the best option would probably be to look for a donor motherboard.

    Bagel -

  2. ppZWjRHLQIGKnCcF

    • Remove the single Phillips screw securing the hard drive bracket to the chassis.

    • This screw is captive to the hard drive bracket.

  3. aqXCuJX1S2JPdcOa

    • Lift the hard drive by its pull tab enough to grab and remove the retaining bracket.

    • Lift the hard drive out of the chassis, minding the cable attaching it to the computer.

  4. BYrJWMZiPwfcVq2C

    • Remove the hard drive from its cable by pulling the cable connector straight away from the drive.

  5. xAAWGW1LmJUlkFJG

    • Remove the four 10.3 mm Phillips screws securing the mid wall to the upper case.

    Need to add a step above this to remove the bottom cover.

    Daniel Zimble -

  6. R2XZFdFZpEfkTptw

    • Lift the mid wall out of the upper case.

  7. FxVjUBSNswUTaDlA

    • Remove the following three screws securing the fan to the upper case:

    • Two 5 mm Phillips screws.

    • One 7 mm Phillips screw.

  8. I1mtoITgVFl1UPoi
    I1mtoITgVFl1UPoi
    pdEkqQ5ZUej2R3Q6
    1GnMntUbPkJZ2GdF

    • Use a spudger to pry the fan connector straight up and out of its socket on the logic board.

    • It is useful to twist the spudger axially from beneath the fan cable wires to release the connector.

    • The fan socket and the fan connector can be seen in the second and third pictures. Be careful not to break the plastic fan socket off the logic board as you use your spudger to lift the fan connector straight up and out of its socket. The layout of the logic board shown in the second picture may look slightly different than your machine but the fan socket is the same.

  9. gEQm4YyIFTsNNfIW

    • Lift the fan out of the upper case.

  10. 2LMCPDAw4WyuZSi1

    • Using the flat end of a spudger, pry the subwoofer connector straight up off the logic board.

  11. XjGfFufIZcI54LAk

    • Remove the single Phillips screw securing the subwoofer to the upper case.

    My subwoofer has two screws

    Arbera Barbera -

  12. kKiY2Zn6btSpSmST

    • The subwoofer is still connected to the right speaker, so don't completely remove it just yet.

    • Lift the subwoofer off the optical drive, and set it above the computer.

  13. kQt54BmUxtHJekcZ

    • Use a spudger to pry the optical drive connector straight up off the logic board.

  14. idFdNZUqmVolZUhi

    • Use the flat end of a spudger to pry the hard drive cable connector straight up off the logic board.

  15. R3QrsL3ytapXRlDt
    R3QrsL3ytapXRlDt
    63JoWo2NAV14jHXD

    • Remove the three 2.5 mm Phillips screws securing the optical drive to the upper case.

  16. IPFJZJSnaFqXftPV

    • Lift the optical drive from its right edge and pull it out of the computer.

  17. sJDI4xviUYi4yrKr
    sJDI4xviUYi4yrKr
    4ip1DDTlFE3EjLwm

    • Peel the hard drive cable from the adhesive securing it to the upper case, and maneuver the plastic retaining block out of the upper case.

    • The hard drive cable and the plastic retaining block are attached together.

  18. Cs3TawrZTSQry5J4
    Cs3TawrZTSQry5J4
    vC4xoCgSwKrwY11O
    wRTQORwZJPNLv6tZ

    • Peel back the small piece of black tape covering the right speaker cable.

    • Use the tip of a spudger to pry the right speaker up off the adhesive securing it to the upper case.

    • Lift the subwoofer and right speaker assembly out of the upper case.

    I left it in place. It was not necessary to remove it for replacement of the keyboard.

    Arbera Barbera -

  19. hIOZAsCTyKwVSkFW
    hIOZAsCTyKwVSkFW
    jwtDusIxRePj4q5J

    • Use the tip of a spudger to flip up the locking lever to release the IR sensor ribbon cable from its socket.

    • Pull the IR sensor ribbon cable straight away from the logic board.

    Pull the IR sensor ribbon cable straight away from the logic board.

    Could be useful with a comma

    Vamos Goo -

  20. MUgF2yWqLPIeRIUB

    • Use the flat end of a spudger to pry the trackpad connector straight up off the logic board.

  21. YLSxVeRs1ZN51eEw
    YLSxVeRs1ZN51eEw
    wrTJ4RjvXDVMOUXr

    • Using the tip of a spudger, flip up the keyboard ribbon cable retaining flap.

    • Pull the keyboard ribbon cable straight out of its socket.

    When you are on the way back, this is where you can connect the keyboard lighting. You put the flat cable from the new keyboard into the connector directly to the right of the one for the keyboard ribbon cable. It shows itself!

    Arbera Barbera -

  22. rtRlgopI1bqsbogR
    rtRlgopI1bqsbogR
    Wc5AMgsRgaqGYqn2

    • Remove the two 5 mm Phillips screws securing the keyboard flex bracket to the upper case.

    • Lift the keyboard flex bracket out of the upper case.

  23. ORdACJPNvJgwUH1s
    ORdACJPNvJgwUH1s
    nEMO6TnAFnN4PM1w

    • Remove the single Phillips screw securing the battery cable cover to the upper case.

    • Remove the battery cable cover from the upper case.

  24. QI3PbUcyGmAX2iJS

    • Use a spudger to pry the battery level indicator cable connector straight up off the logic board.

  25. II3CM6yKXZfnIxwO

    • Disconnect the battery cable connector by pulling it straight away from the logic board.

    • If you cannot grasp the cable with your fingers, a spudger and tweezers may be helpful for removal.

  26. GXvFks43SnMlooF6
    GXvFks43SnMlooF6
    fhHD2dSnHcrpmENu

    • Remove the two 4mm Phillips screws securing the bottom case clip to the upper case.

    • Lift the bottom case clip out of the upper case.

    I didn't have that part in my MB at all

    grze -

    Yup me either

    Nick MG -

    AOL. E..g. mine was lacking this part (and its mounting holes) too.

    Edgar Fuß -

    I think this is the wrong photo. The part you have to remove is a bridge above the microphone.

    Roel Hoek -

  27. SdTtNxqKrPSieEVA

    • Use the tip of a spudger to release the microphone from the upper case.

    It might be worth noting the microphone is glued to the Upper Case.

    Edgar Fuß -

  28. iNcXOF2IsQDCDKqE
    iNcXOF2IsQDCDKqE
    mijFhkBIXKrY24xo

    • Remove the following five screws securing the logic board to the upper case:

    • Four 3 mm Phillips screws.

    • One 3.5 mm Phillips screw.

    • Remove the two 7 mm Phillips screws securing the DC-in board to the upper case.

    • Lift the logic board from its left edge and pull it out of the upper case.

    Note to Step 41: the 3.5 mm Phillips screw and the 3 mm Phillips screw directly opposite were swapped in my MacBook. I believe the screws as indicated in the iFixIt guide are currently incorrect as it seems that the location in my MacBook would be correct as all 3 mm screws engage directly into the top case while the one 3.5 mm screw engages into the black bracket.

    wintermute -

    With my MacBook, the left screw (near the fan) was 5mm (not 3), the other “red” screws were 3mm (as indicated) and the “orange” one was 3.8mm (not 3.5).

    Edgar Fuß -

  29. sHXe5ULRycYmrHrQ
    sHXe5ULRycYmrHrQ
    HPXLjNYoxIBTEAFS

    • If you are buying a new upper case from us, the next two steps are not necessary. Your upper case will come with these parts preinstalled.

    • Remove the following screws securing the battery connector cover to the upper case:

    • One 2.5 mm Phillips screw.

    • Two 1.5 mm Phillips screws.

    • Lift the battery connector cover out of the upper case.

  30. b223PPr3IZBUAykE

    • De-route the battery connector cable through the gap in the upper case and remove it from the computer.

    • If you are installing an Upper Case that is missing the black bracket in the middle then transfer it from the old case to the replacement.

    During your checkout of your hard work, make sure in System Preferences that the (use all F1, F2 etc. keys as standard function keys) box is unchecked.

    ChasCam580 -

    It was not necessary to remove this item for me. I could remove the keyboard with it in place

    Arbera Barbera -

  31. RkVMDiyqmYELGvhF

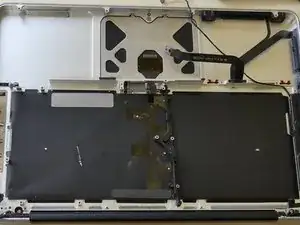

    • Now that you have removed the display (only required if a new top case is used to replace the keyboard), logic board, optical drive, and various other components from the upper case (or top case), you should have something that looks like this.

    • We are ready to begin!

    Pictures missing fix it please

    altjonpreci -

    The photo is missing for lots of these steps

    Henry Collingridge -

    More picture for whats?

    Clodoaldo Castro -

  32. EmpIRZsDQPD3oB5w
    EmpIRZsDQPD3oB5w
    GJ6DNTy56EUUO1Hg

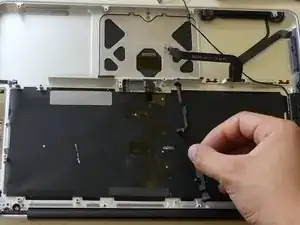

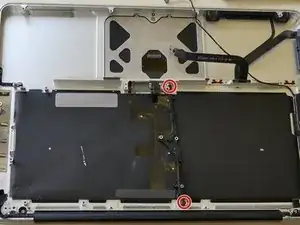

    • You have to remove these two screws from the bracket.

  33. oTqQ6ArvZTjWymRN
    oTqQ6ArvZTjWymRN
    TTDEKHhC6JFOaZ3J

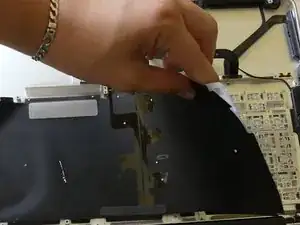

    • First, you'll notice the large black piece of plastic over the back of the keyboard.

    • You will need to use a spudger or a small straight edge screwdriver to carefully unstick the the edges of the plastic from the upper case.

    • Be careful not to tear the plastic as it is very thin.

  34. ZYvT3wFKacqjdSFp

    • Now you will see a large clear plastic wafer stuck to the back of the keyboard.

    • You can remove this easily buy peeling it up slowly.

    Listings on ebay offer only this part as a backlight component. Is that enough just to replace this wafer to have a backlight?

    Semir Teskeredzic -

  35. fe3h3UUjK1OGD4Rw
    fe3h3UUjK1OGD4Rw
    4Ml3RdGPbFFBXd5a

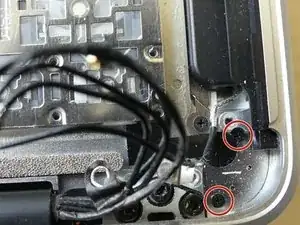

    • Now that you can see the back of the individual keys, stop there.

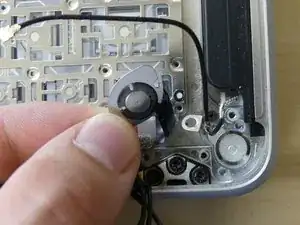

    • You now need to unscrew the 2 small, black Philips screws from the back of the power button assembly. Failing to do this will tear the the power button's ribbon cable when you try to remove the keyboard.

    • After you do this, remove the power button by pressing on the power button from the top of the upper case. The power button and a small metal ring (spring) will come out.

  36. TLhs1DLSQnVmlNef

    • Now you have all probably noticed the horde of tiny black screws that cover the back of your keyboard. Yes, unfortunately we have to to take 'em out!

    • Be very careful here as you don't want to strip the small screw heads and you also don't want to lose any. I've found that having a magnet to pick up the screws is helpful. A small container to put them in is also useful for keeping them out of the carpet.

    • There are a total of 66 screws.

    I had only 59 screws, still it seems OK..

    Arbera Barbera -

    I count 68 screws

    Kerry Carroll -

    Yikes, I only counted 49. If you include the power button as well, 51. But, I could have easily miss counted, and the keyboard isn't going anywhere.

    lyonmissions -

  37. s4LkMveb5urJZp1N
    s4LkMveb5urJZp1N
    XNjU1SJJlayW3L4r

    • Now that you have removed all of the screws, you can gently press on the face side of the keyboard and it will come right out. (If you have removed all the screws.)

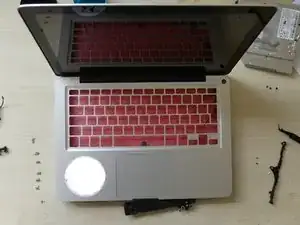

    • Here is an image of the top case without its keyboard. I hope you're not winded yet. We're only half way there!

    48 screws on the KBD and 2 holding the PSU switch

    SEA Tech Evolution -

  38. TsmZqRZH4jRmgJrQ
    TsmZqRZH4jRmgJrQ
    DdXuO4SSBeAuKvNX

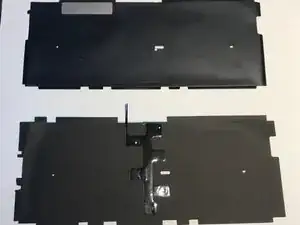

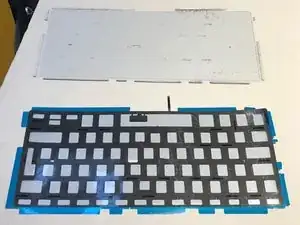

    • Now you are going to install that new backlit keyboard you've always wanted!

Abschluss

To reassemble your device, follow these instructions in reverse order.
