Urge Basics Soundbrick Speaker Woofer Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 - 25 Minuten

Einleitung

This guide will teach you how to replace a malfunctioning internal woofer of the Urge Basics Soundbrick portable speaker. This replacement can take place at anytime as long as there is plenty of light. To complete this repair, the you will need a Phillips #1 Screwdriver, the replacement woofers, and the Urge Basics Soundbrick.

  1. GD2RkTe3YVgfXMUa
    GD2RkTe3YVgfXMUa
    fB1oq13NkMKnE4iU
    FPIuTfJ3DGDYGXHH

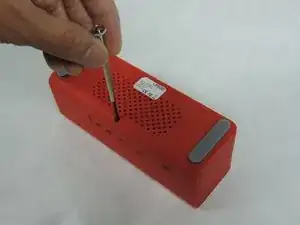

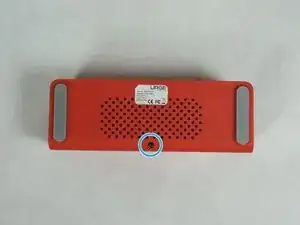

    • Flip the speaker upside down.

    • Unscrew the middle screw with a Philips #1 screwdriver.

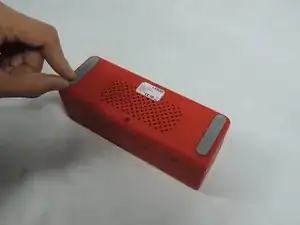

  2. 2eQWIx1LnSYGhiTF
    2eQWIx1LnSYGhiTF
    lWgrSFiEOVrgbFZc

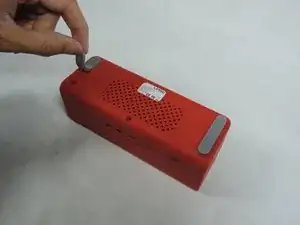

    • Peel off the two gray tabs to expose the four inner Philips #1 screws.

  3. am3A3wZIrrHqK5NB
    am3A3wZIrrHqK5NB
    o6T1gdVVlskjGRxe
    YXx6ZNmRscGH1ELE

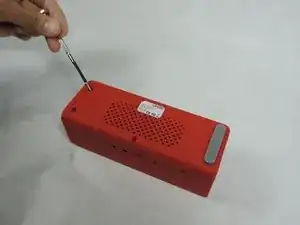

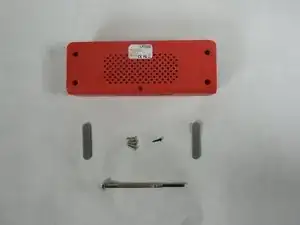

    • Unscrew all four screws with a Philips #1 screwdriver.

    • The screws are deep and can be difficult to take out.

  4. f2KGUvfVEmx24rjG
    f2KGUvfVEmx24rjG
    xOZ1xUymMBBVa5wp
    CT5P4JGmNdAJVnsb

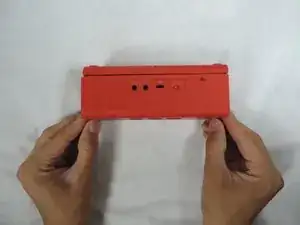

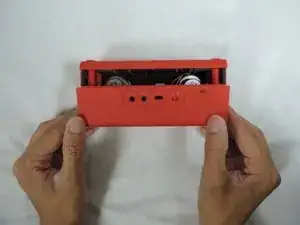

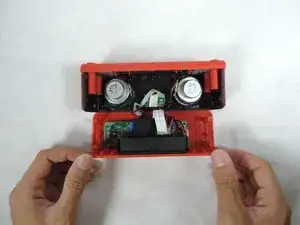

    • Flip the speaker so that the ports are facing up.

    • Unfold the speaker's cover away from the body.

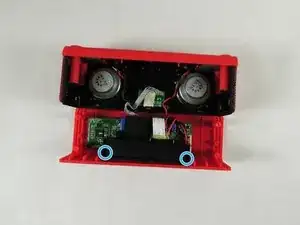

  5. aZ2eZmADEfEL4JFf
    aZ2eZmADEfEL4JFf
    yUKWjUibUhkq6nA2

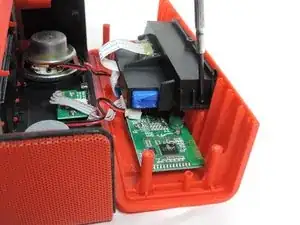

    • Remove the two Phillips #1 screws found on each side of the battery compartment.

    • Removal of battery compartment is necessary to prevent electric shock when replacing the woofer.

  6. 4K3e4UxAhEHm6Txe
    4K3e4UxAhEHm6Txe
    prkw6TJqqLP5fbW2
    JckvKyAPnaBNDB6w

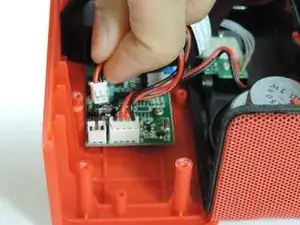

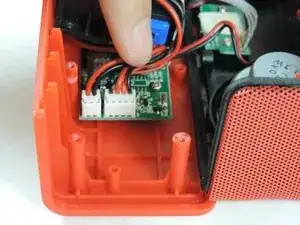

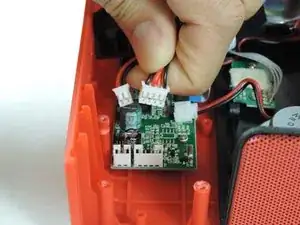

    • Disconnect the battery connectors attached to the circuit board by unplugging them.

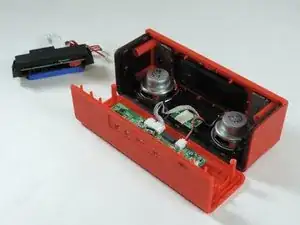

  7. gAHiMAmrAihttdEC
    gAHiMAmrAihttdEC
    NbJtYCqBF1Ow4ble
    ZyMEcdUWEluFS5xg

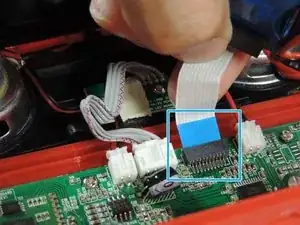

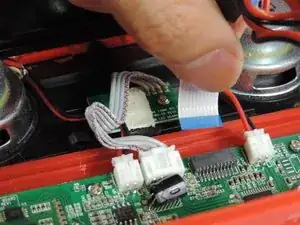

    • Disconnect the ribbon cable from the battery by carefully pulling it out.

    • Remove the battery compartment.

  8. 61ROyiGSHZWNTyES
    61ROyiGSHZWNTyES
    hgi2BvruVtChLYIA
    aee2kTRUojZgoe1l

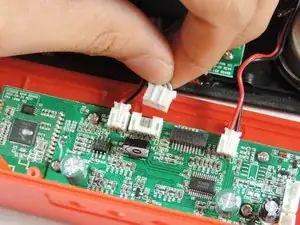

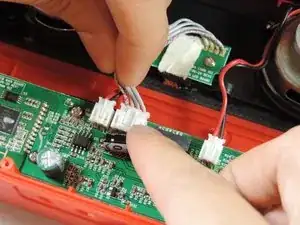

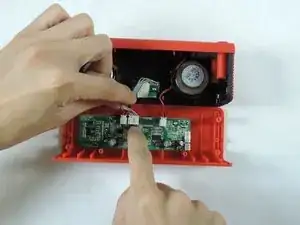

    • Disconnect the adjacent connector from the main circuit board.

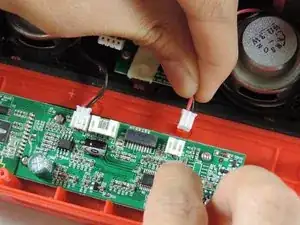

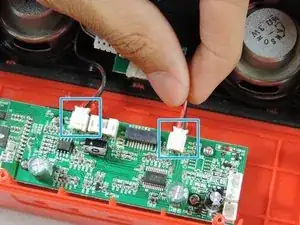

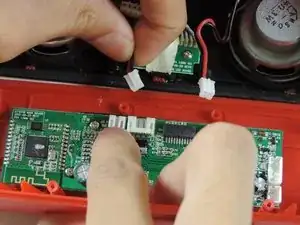

  9. QWJPHvUA11ts3vNv
    QWJPHvUA11ts3vNv
    C6UDsXcGYlqIpFZn
    2RZWBy4EbMVT51GM

    • Disconnect the woofer's two connectors from the main circuit board.

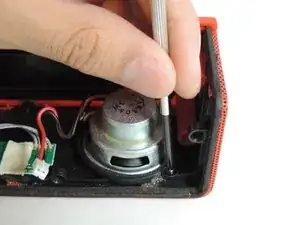

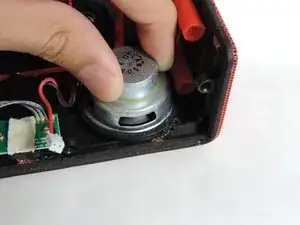

  10. HxEWimYSbLnNCfVL
    HxEWimYSbLnNCfVL
    qRP4laOMGpTRer2T
    PJNJDHtLCWfsH5Ya

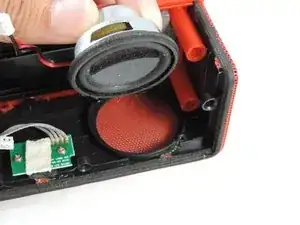

    • Remove the two Phillips #1 screws keeping each woofer in place.

    • Carefully remove the woofers and replace them with new ones.

Abschluss

To reassemble your device, follow these instructions in reverse order.
