V-Moda Crossfade Wireless Headphones Battery Replacement

Geschrieben von: Arthur Shi
  • Kommentare: 17
V-Moda Crossfade Wireless Headphones Battery Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

10 - 40 Minuten

Einleitung

This guide will show how to remove and replace the lithium-ion battery for the Crossfade wireless headphones. While the headphones boast durable hardware design, the electrical aspects are poorly lacking, and the undersized battery wears out quickly. You can use V-Moda’s “immortal program” to get a discount on a new set of headphones, but they are still very pricy.

If you are replacing the battery because the headphones do not work in Bluetooth mode, check to make sure if the battery’s actually the culprit. If you can charge the battery (power button lights up), chances are, something else is broken—possibly the toggle switch.

While getting access is easy, the battery is soldered onto a small board. You have to de-solder and re-solder two wires to replace the battery.

You can replace the battery with any standard two-wire lithium-polymer pack, as long as it fits in the headphones.

  1. sbtyvbnkpD3ub6PH
    sbtyvbnkpD3ub6PH
    x2XHqNpNHoCjQQ22
    uuVQP1KsC1p1dvqq

    • The battery is housed in the left half of the headphones (the side with the micro-USB port).

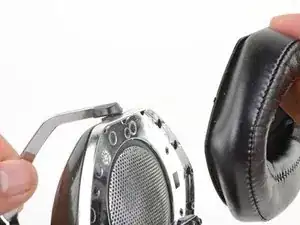

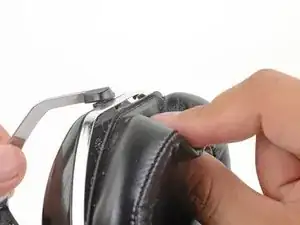

    • Grasp the left ear cup cushion with your fingers and gently pull towards the center of the earcup. This will release the cushion from the tabs that are holding it in place.

    • Gently pull the ear cup from the rest of the tabs that hold it in place.

    • Remove the ear cup cushion.

    • To reinstall the cushion, align the ear up to the headphones. Squeeze around the perimeter of the cushions to snap the ear cup in place.

  2. T5lMtKWoVB2kiCYa
    T5lMtKWoVB2kiCYa
    S3Wg2yo5YvRE5Y5W

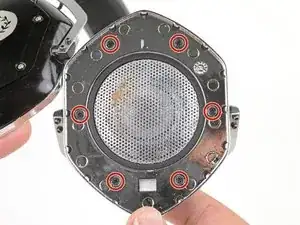

    • Remove the six 10.1 mm Phillips screws securing the left headphone's speaker plate.

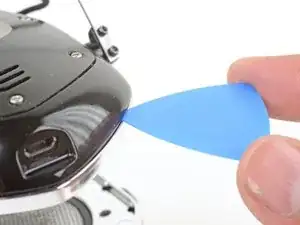

    • Insert an opening pick in the seam between the left headphone's plastic housing and metal rim.

    • Slide the pick along the seam and twist gently to loosen the speaker plate.

  3. X1pvauyNcyMMNe2X
    X1pvauyNcyMMNe2X
    x2HOZoyaTm6ObdNM

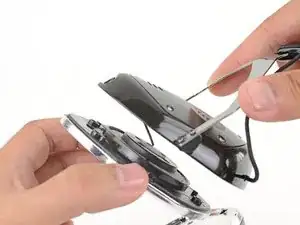

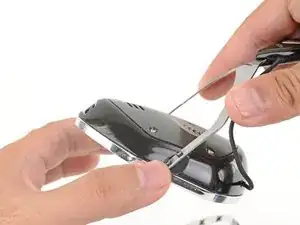

    • Grasp the metal rim with your fingers and gently pull it away from the headphone cup.

    • Do not attempt to remove the speaker plate. The speaker is connected with very delicate wires.

  4. aFLpsxw2g6MHTHd1
    aFLpsxw2g6MHTHd1
    VeTFoYZHt2Mk56KY

    • As you work on the headphones, be careful not to stress the delicate speaker cable.

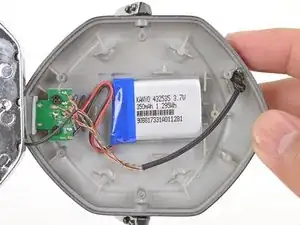

    • The battery is a Kanyo 350 mAh pack measuring 34mm x 24mm x 5mm.

    • The battery area can fit a battery that's up to 39.4mm x 31mm x 5mm.

    • There are reports that V-Moda has been using different sized battery packs. Before you order a replacement battery, be sure to measure carefully.

    • You can replace the battery with any standard two-wire lithium-ion polymer pack that would fit in the space.

  5. nwKaRMqHtMAcYJor
    nwKaRMqHtMAcYJor
    AWut16Tg2MqUQESU

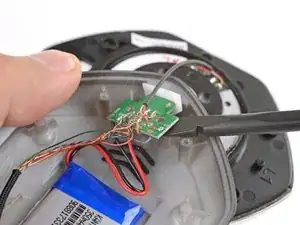

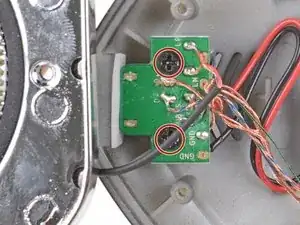

    • Remove the two 5.9 mm Phillips screws securing the micro-USB port.

    • Use the flat end of a spudger to pry up and loosen the board from the two screw posts.

  6. J5yVdWa6kZIs2Faw
    J5yVdWa6kZIs2Faw
    PCeUVpXftOYnF3D3

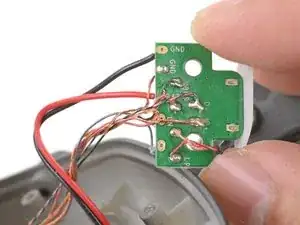

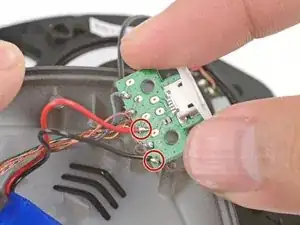

    • Carefully flip the board over and note the two solder joints connected to the battery cables.

    • De-solder the two solder joints and replace the battery. You will have to re-solder the battery to these contact points.

    • Alternatively, cut the wires one-by-one before you desolder them. This will help prevent unintentional short circuitry.

    • Be very careful not to short the battery wires. Doing so may overheat and ignite the battery.

    • Be sure to maintain the correct battery polarity when you re-solder the wires.

    • The back of the board is shown for reference.

    Rather than loosening the USB plate to de-solder the two wires, just cut the wires near to the battery and then strip and connect the new battery wires to the old wires. It just needs connecting up! No need to mess about with a soldering iron!

    Bob Corless -

    can you do a walk through on replacing the power switch “switch toggle”.

    Tola -

    I would at least solder the new wires together to ensure a secure connection, much better than twisting wires together and its really easy to do this. I wish they had a nice strong battery replacement to directly recommend

    BlackStar Freeman -

Abschluss

To reassemble your device, follow these instructions in reverse order.
