Welcome, fellow roboticists. If you are having a strange clicking noise coming from your VEX EDR 393 motor, odds are the gears are stripped and need to be replaced. Lucky for you, the following guide shows you how to safely and properly replace the gears inside. Please carefully read and follow the steps below and you will have your motor working like new in no time!
Werkzeuge
-
-
Disconnect the motor from any other connected devices or power sources.
-
Use a Small Phillips Head Screwdriver to unscrew the four screws from the black casing's corners.
-
-
-

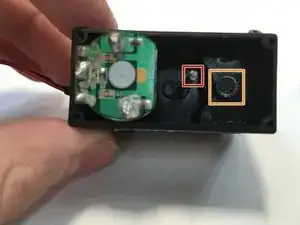

Select the replacement gears that match the gears you just removed.
-

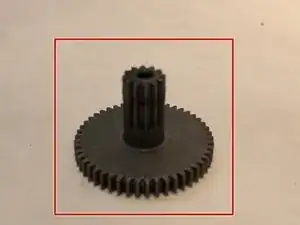

Take the gear that has teeth on its entire length and insert it onto the metal pin. Push it all the way into the bottom of the motor. It should connect with a small gear on the bottom.
-

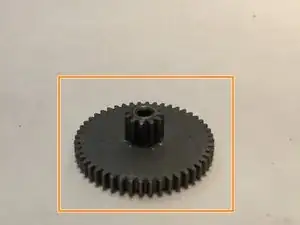

Now, insert the larger gear with teeth on the base onto the circular plastic peg.
-
Replace the black bottom casing and screws.
-
-
-
Use a Small Phillips Head Screwdriver to unscrew the four screws from the green casing's corners.
-
-
-

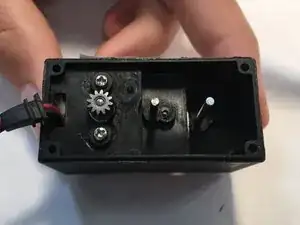

Replace the old stripped gears with the remaining replacement gears.
-

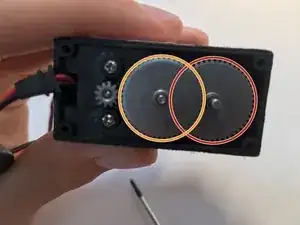

Place the gear with the long stem into the larger gap.
-

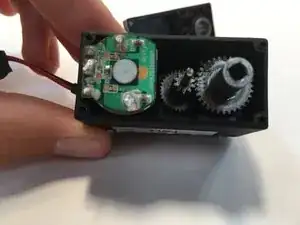

Place the smaller gear into the motor.
-
-
-
Replace the green top casing.
-
Ensure the casing fits between the ridges on the wires' rubber collar.
-
Use a Small Phillips Head Screwdriver to replace the four screws.
-
Your motor should be working again. Before reinstalling it on your robot, test it either with a backup battery or by plugging it in to your cortex. If you hear more grinding or anything out of the ordinary, reopen the motor to make sure the gears are aligned.
You can also use this process to change the gear ratio of the motor for different functions.
