VTech Baby's Learning Laptop Mode Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will show you how replace a faulty mode switch if your device does not properly switch modes.

  1. iVivn2HWYeXjOSwp

    • To remove the battery door, loosen the screw shown using a Phillips #2 screwdriver.

    • A coin can also be used to loosen the screw.

  2. mXEx4dGKS5k6O6ct

    • Remove the battery door.

    • Take out the batteries.

  3. 5OencTLpgZbANSOZ

    • Remove the rear panel screws using a Phillips #2 screwdriver.

    • Two 21.6mm (Long)

    • One 9.8mm (Short)

    • Five 13.8mm (Medium)

  4. DSsiVaGkpRhua2Zp
    DSsiVaGkpRhua2Zp
    Q5S1VVMZmtIrVMcD

    • Gently pull up on the rear panel.

    • Be careful not to pull on the wire connections.

    • Rest the laptop open on the table.

    Laptop is not playing sound after putting new batteries . Can you tell how to repair the same.

    Sapna -

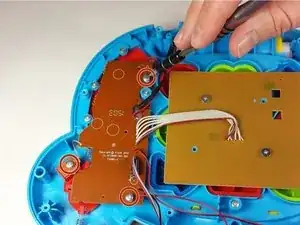

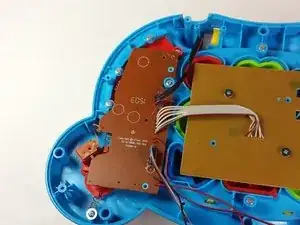

  5. b5RvLLMlFgwJDb6k
    b5RvLLMlFgwJDb6k
    JfcS4fb6M2tf2HoW

    • Using a Phillips #0 screwdriver, remove the three 7.3mm screws.

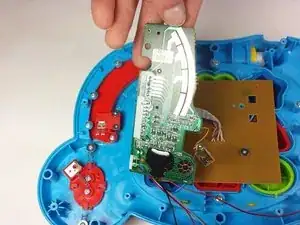

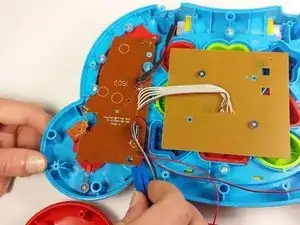

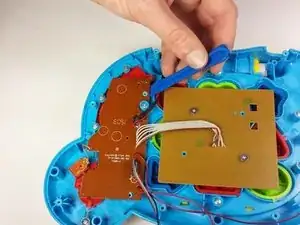

  6. CC6WsX3kyUYyZVlA
    CC6WsX3kyUYyZVlA
    BylB4ODptXSEZEDc
    1K4ANxrf5X3SaFhx

    • Once the screws have been removed from the board, use a plastic opening tool to gently pry up the board and expose the mode switch assembly underneath.

    • Lay the board down gently and out of the way.

    • Take care not to damage any of the wires or the board itself.

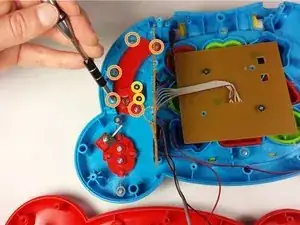

  7. uCRIZX2u3MEMn1Ff

    • Using a Phillips #0 screwdriver, remove the seven screws securing the mode switch assembly to the device.

    • Five 7.3mm

    • Two 6.0mm

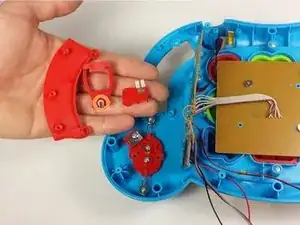

  8. FyZoqIljnGJxPYrB

    • Once the screws have been removed, the mode switch assembly can be removed easily.

    • Take care not to misplace the spring indicated in the picture.

    • You need this spring to find a matching replacement if it is in anyway damaged.

Abschluss

To reassemble your device, follow these instructions in reverse order.
